Because of its modular structure and independent drive system, the SPMT meaning is now seen as an essential solution for shifting large objects such as bridge beams, industrial refinery parts, wind turbine equipment, and even ship components.
The ability to navigate restricted areas, adjust to rough ground conditions, and support exceptional weight makes it indispensable in large-scale projects across Uganda. It is valued in industries where safety, reliability, and accurate control are non-negotiable, especially when moving extremely heavy or irregularly shaped items.

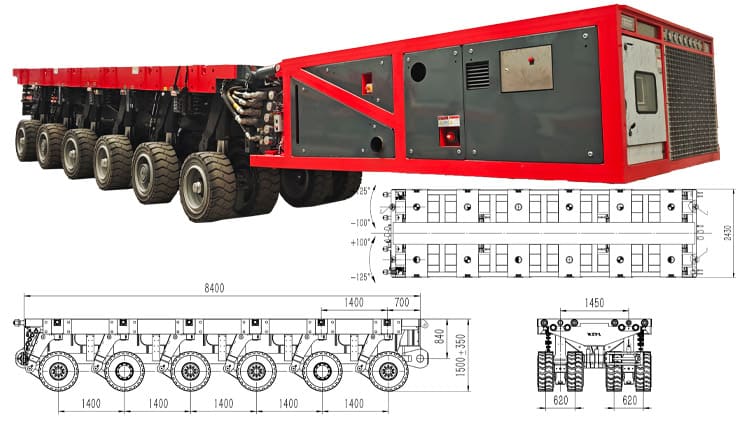

Dimension: 8400mm*2430mm*1500mm
Usage: Transport heavy duty cargo
Max Payload: 180 tons
Tires: 24 units
Suspension type: Hydraulic lifting steering
Landing gear: Front and rear hydraulic support cylinder
King pin: 2.00 or 3.5 inch bolt-in king pin
The foundation of the system lies in its modular frame. Produced from high strength steel, this SPMT transporter base structure can bear tremendous weight while allowing different combinations depending on the project's needs.

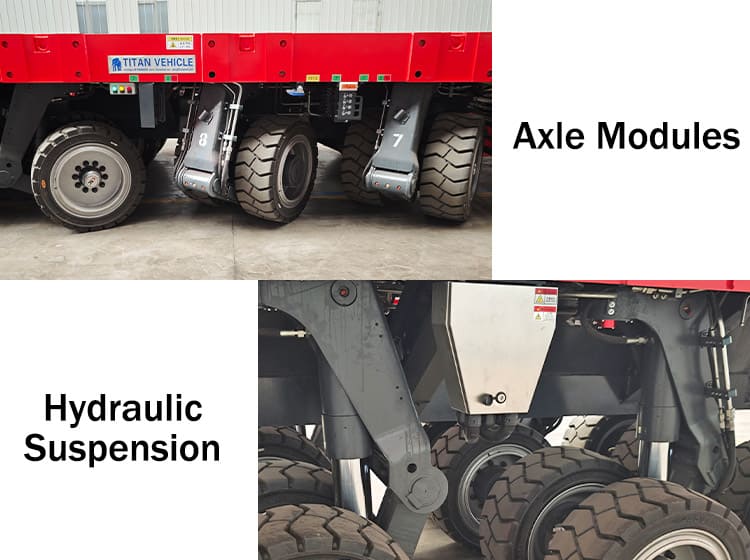

Modules can be joined lengthwise to increase overall carrying length, or they may be placed side by side to broaden the platform and distribute weight more evenly. This adaptability means that companies in Uganda can use the same equipment for very different cargo sizes without having to invest in multiple specialized machines.

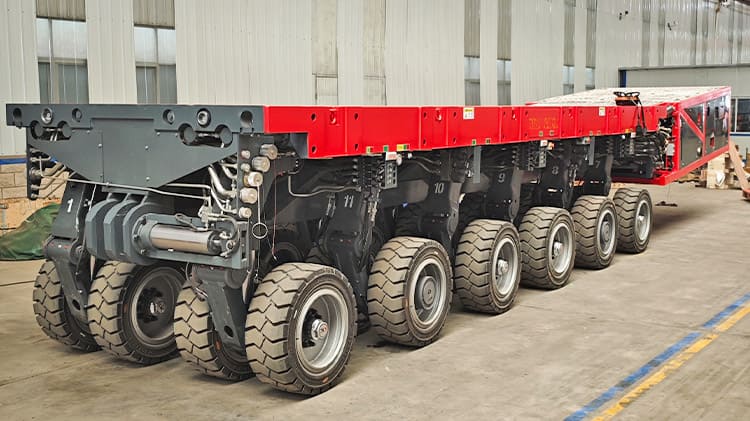

A second critical element is the hydraulic suspension. Each SPMT transporter axle line has independent hydraulic cylinders that make it possible to raise or lower specific sections of the transporter. This ensures that weight is consistently balanced, safeguarding both the load itself and the surfaces it travels on.
In practice, the suspension system helps the SPMT trailer remain steady over uneven terrain and makes it possible to adjust height in order to pass under bridges or through areas with limited clearance. These functions significantly enhance the safety and maneuverability of the equipment in demanding working environments.
The steering capabilities of the SPMT transporter further underline its advantages. Unlike standard trailers, every wheel set on the transporter can rotate a full 360 degrees. This design supports a wide variety of steering options, including crab-like sideways movement, diagonal motion, circular rotation in place, or synchronized all-wheel steering.
Such flexibility enables operators to move large components with precision through narrow construction sites, crowded industrial yards, or offshore platforms where space is highly restricted. In Uganda's growing infrastructure and shipbuilding industries, this level of control is particularly valuable.

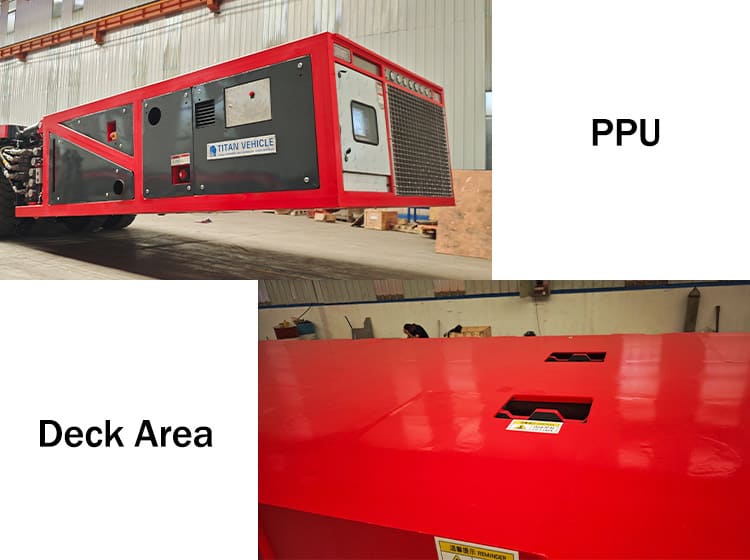

Behind these movements is the Power Pack Unit, or PPU. This compact engine-driven system generates the hydraulic power needed for propulsion, steering, and lifting. A single PPU can support multiple connected SPMT transporter modules, but for especially heavy or complex tasks, several PPUs can be operated together.
The arrangement guarantees consistent power delivery and allows the transporter to handle enormous projects safely and efficiently. Each axle group also contributes to performance, as wheels are independently driven and can be adjusted according to the load. This not only spreads weight evenly but also helps avoid damage to road surfaces and reduces mechanical strain.

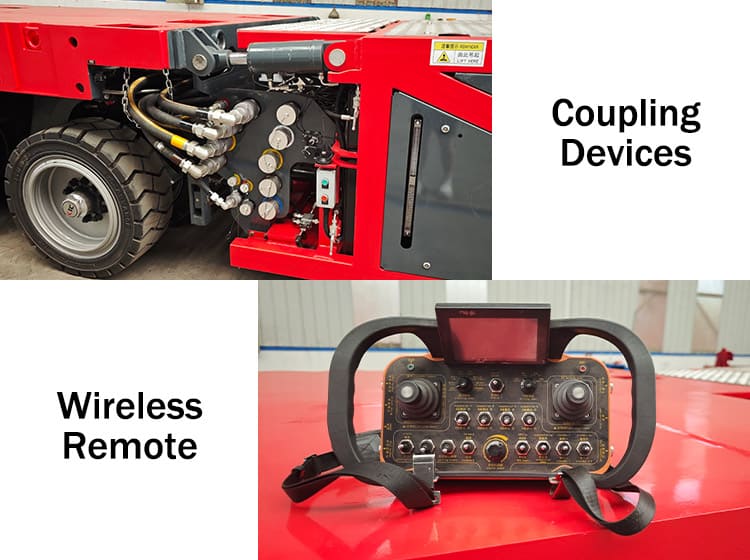

To manage such complex machinery, the SPMT meaning is fitted with an advanced electronic control system. Operators use either wired or wireless remotes to adjust movement, height, steering modes, and speed in real time. The system includes safety mechanisms such as error detection, automatic feedback, and built-in safeguards to keep operation stable.
Data from sensors supplies continuous updates on factors like hydraulic pressure, alignment, and weight distribution. This SPMT trailer constant monitoring ensures that even during difficult transport tasks, the load remains secure and the operator maintains full control.
The SPMT trailer is more than just a trailer; it is a complete engineered system that integrates power, versatility, and protection. To guarantee that each SPMT meaning reaches customers in optimal condition, strict packaging methods are applied.
A protective wax coating is used on the SPMT transporter, followed by a waterproof tarpaulin covering. These measures shield the SPMT trailer from the effects of long-distance sea shipping, particularly salt exposure and moisture. As a result, when the SPMT equipment arrives in Uganda, it retains both its durability and its original appearance.
