The movement of extremely heavy and oversized objects has always posed a challenge in modern industry. Whether it involves transporting bridge beams, refinery machinery, wind turbine components, or ship sections, conventional trailers often lack the flexibility and power to complete these jobs safely.
For this reason, the self propelled modular transporter has emerged as a vital solution. With its modular design, independent drive system, and advanced control features, it provides the strength and maneuverability needed for complex projects in Uganda and many other regions.
Usage: Transport heavy duty cargo
Max Payload: 180 tons
Tires: 80 units
Suspension type: hydraulic lifting steering
Landing gear: Front and rear hydraulic support cylinder
King pin: 3.5 inch bolt-in king pin

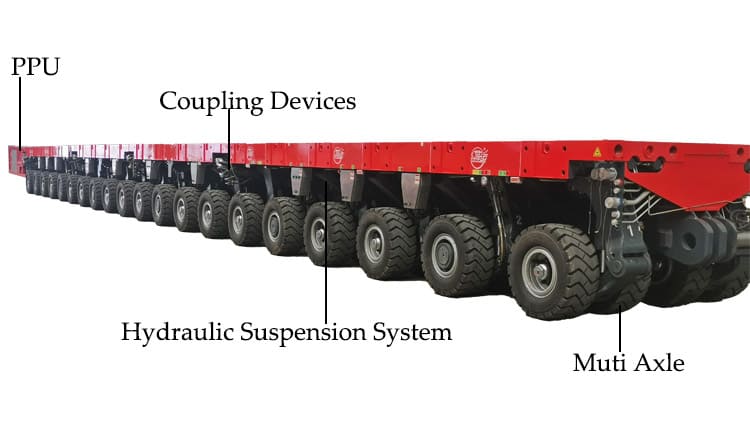

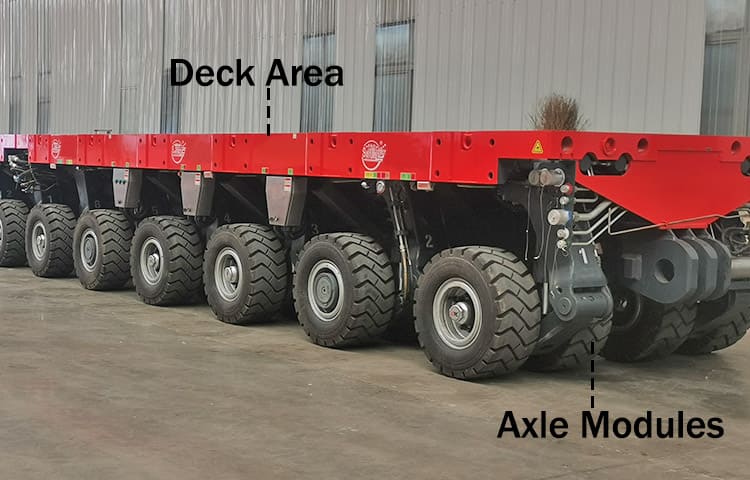

At the core of this equipment lies its highly adaptable structure. Built from high-strength steel, the chassis is engineered to carry extraordinary loads without compromising stability. Modules can be linked in different configurations, either lengthwise to extend carrying capacity or side by side to widen the platform.
This modularity enables companies to handle very different types of cargo with the same machine. In Uganda, where projects often involve infrastructure development and large-scale energy installations, this flexibility translates into both efficiency and cost savings.

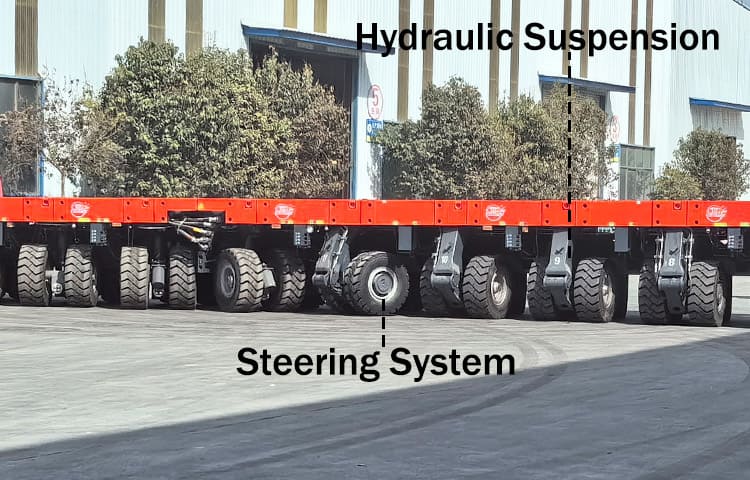

The suspension system further enhances performance. Each axle line on the self propelled modular transporter spmt is fitted with hydraulic cylinders that can be controlled independently. This allows the platform height to be adjusted section by section, ensuring that weight is distributed evenly across the surface.
In practice, the suspension keeps the equipment balanced on uneven terrain, reduces strain on the transported cargo, and makes it possible to pass through areas with height restrictions such as tunnels or underpasses. By minimizing stress on both the load and the road, the system provides a critical safety advantage.
Steering capability represents another key benefit. Unlike traditional trailers that rely on fixed axles, every wheel on the self propelled modular transporter can rotate a full 360 degrees. This design allows for multiple steering modes, including lateral “crab” movement, diagonal travel, circular rotation on the spot, and coordinated all-wheel steering.
Such versatility is particularly valuable in restricted spaces, such as congested construction sites, shipyards, or offshore platforms. Operators can maneuver massive equipment with precision even where turning space is limited, significantly reducing the risk of accidents or delays.

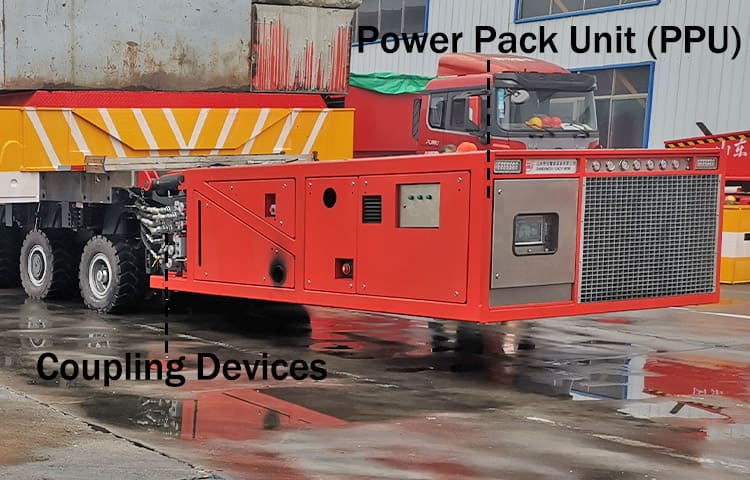

The driving force behind these movements comes from the Power Pack Unit, or PPU. Compact yet powerful, this engine-driven system supplies the hydraulic power for propulsion, steering, and lifting.
A single PPU can operate several connected modules, but in projects requiring extraordinary capacity, multiple PPUs can be synchronized to deliver the necessary power. Combined with independently driven axle groups, the self propelled modular transporter spmt ensures even weight distribution while minimizing mechanical stress and road damage.
Handling such advanced machinery requires precise and responsive control systems. Operators manage the self propelled modular transporter using wired or wireless remote controls, which allow real-time adjustments of speed, height, and steering mode.
Integrated safety functions include error detection, automatic shutdown, and sensor-based feedback on load distribution, hydraulic pressure, and axle alignment. This constant stream of information allows operators to react immediately to changing conditions, ensuring that the load remains stable and the transporter functions safely under demanding circumstances.
The self propelled modular transporter is not just a trailer but a complete engineered solution. By combining these features, it enables the transportation of oversized and irregularly shaped cargo that would otherwise be nearly impossible to move. In Uganda's growing industrial, energy, and infrastructure sectors, this equipment has proven to be an indispensable tool, setting new standards for efficiency and safety in heavy transport.
Packaging and transport preparation are equally critical, particularly when equipment is delivered overseas. Before shipping, every self propelled modular transporter spmt undergoes protective treatment.
A layer of anti-corrosion wax is applied to the surface, followed by a heavy-duty waterproof tarpaulin. These steps safeguard the equipment from salt exposure, moisture, and physical damage during long ocean journeys. For deliveries to Uganda, this process ensures that the transporter arrives in excellent condition, ready for immediate deployment on site.
