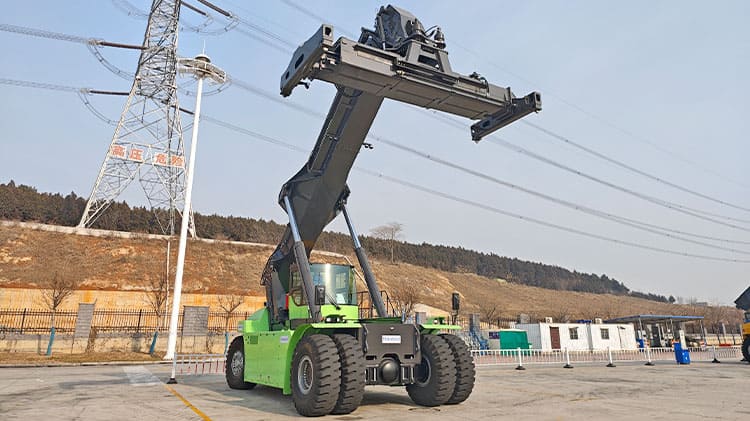

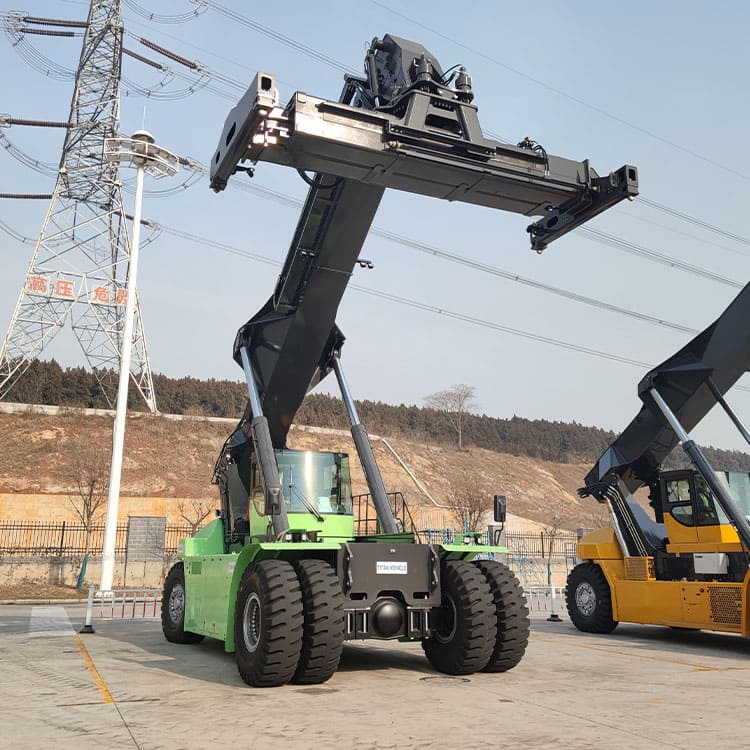

The design of modern electric reach stacker gives operators the ability to lift, position, and transport containers with a high degree of accuracy. This capability is especially valuable in areas where space is restricted and schedules are tight, ensuring that container yards and terminals operate smoothly. In contrast to fixed crane systems, reach stackers offer a more flexible and economical solution, particularly for facilities that manage a wide range of cargo on a daily basis.
Vehicle Model: XCSE model 45t
Motor Model: DM380H46
Rated Power: 200kw
Rated Lipting Capacity: 45000kg
Max Lifting Height: 15100mm
Total Vehicle Curb Weight: 73500kg
Max Design Travel Speed: 28km/h

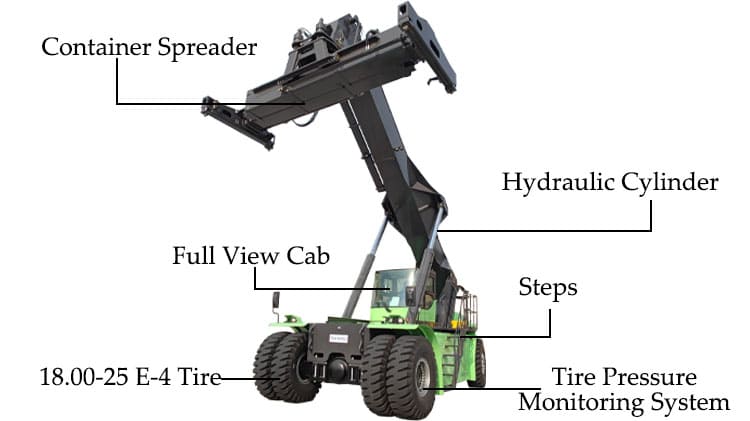

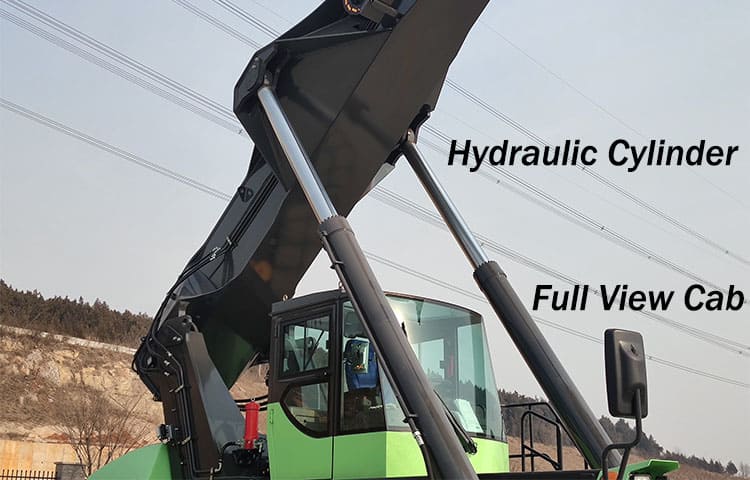

A key element in their design is the operator's cabin. This section of the electric reach stacker is carefully built to balance comfort and functionality. Because clear visibility is essential in container handling, the elevated cabin provides drivers with a direct view of their surroundings. Inside, the space is arranged to maximize efficiency.
Joystick controls, well-organized display panels, and diagnostic systems give operators real-time insights into performance. These features allow reach stacker machine to make quick adjustments while reducing the risk of accidents, ultimately improving both safety and overall productivity.

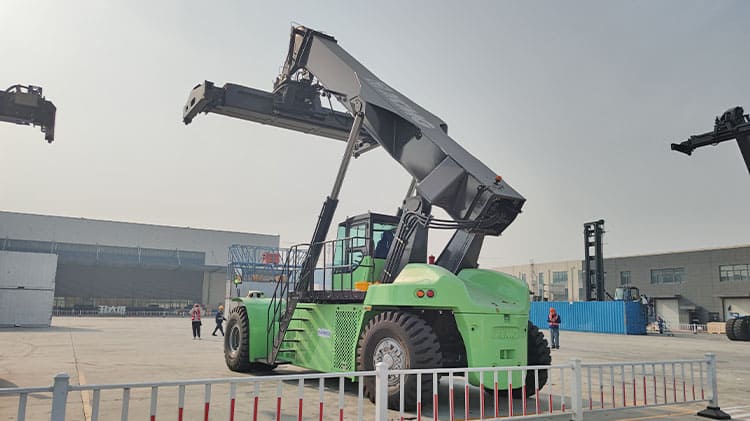

At the center of the lifting mechanism is the boom. Constructed from strong, high-quality steel, the boom is capable of extending, tilting, and reaching containers stacked at different heights or positioned several rows back. Its durable build enables it to handle the demands of continuous use, while still delivering steady and controlled movements.
Hydraulic cylinders supply the necessary power, providing smooth lifting even in tight yard conditions. This combination of strength and agility is especially beneficial in Uganda, where container terminals often operate within limited space.

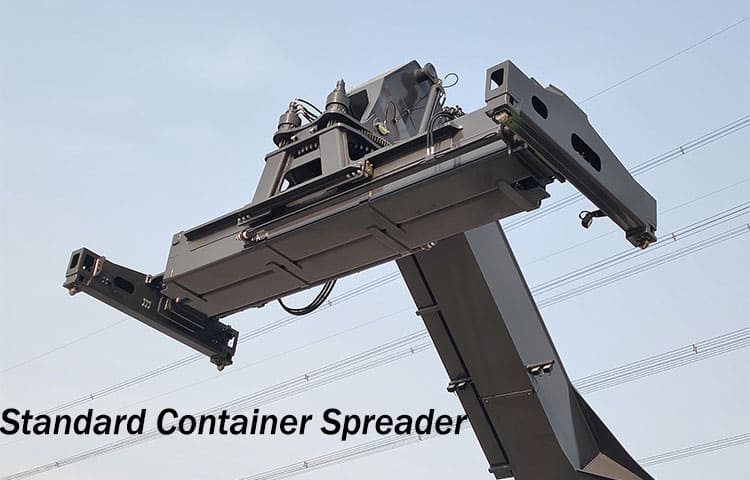

The reach stacker boom is fitted with a container spreader at its end. This tool attaches to containers by locking onto their upper corners with twist locks. Most spreaders are adaptable, able to handle both 20ft and 40ft containers.
Some are further equipped with alignment systems and sensors that help guide the locking process, reducing setup time. By allowing containers to be connected and released quickly, the spreader shortens turnaround times and increases throughput during busy operations.
Another essential component is the hydraulic system, which powers the boom, spreader, and in many designs, the steering system. A well-planned hydraulic layout ensures consistent performance and precise control, with minimal delay in response.
Beyond movement efficiency, the system also influences fuel usage and the reach stacker machine's service life. Advanced hydraulic designs are often optimized to reduce energy waste, keeping operations cost-effective while ensuring dependable performance in Uganda's logistics hubs.
Supporting all of these systems is the heavy-duty chassis. This strong base holds the drivetrain, engine, and other critical components. Reinforced axles and large pneumatic tires allow the electric reach stacker to move steadily across uneven or rough ground, while a high-torque diesel engine provides the power needed to transport heavy loads over short distances. This design ensures the electric reach stacker remains dependable in demanding working conditions.

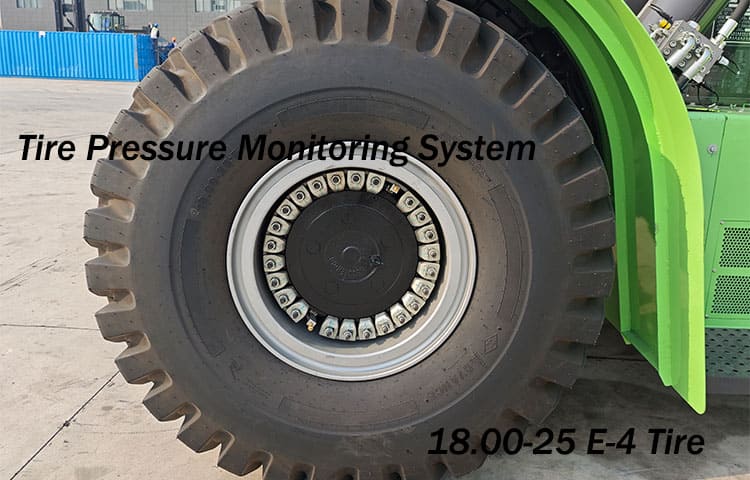

Safety is integrated throughout the reach stacker machine. Load monitoring devices prevent the equipment from exceeding safe lifting limits, while tire pressure monitoring systems provide early warnings of potential issues.
On advanced versions, safety can be further enhanced with technologies such as rear cameras, radar guidance, and anti-rollover systems. Together, these measures improve both operational efficiency and worker protection.
Stability is also reinforced by the counterweight, positioned at the back of the electric reach stacker. This weight is carefully calculated to keep the equipment balanced when lifting containers at maximum reach. In some versions, stabilizing legs can also be deployed. These supports are particularly useful when working on sloped or uneven ground, or when stacking containers to greater heights.
The electric reach stacker machine's combination of lifting power, adaptability, and operator-focused controls makes it indispensable for port and terminal operations. In Uganda, reach stacker provide the reliability and flexibility needed to keep logistics running effectively.
