The 45 ton reach stacker has become an indispensable tool in Uganda, where efficient container movement is vital for ports, railway terminals, and logistics centers. This machine is well-regarded for its strength and precision in lifting, transporting, and organizing shipping containers. Its combination of speed, maneuverability, and flexibility makes it particularly valuable for businesses that work under tight schedules and in spaces where operating areas are limited.
Vehicle Model: XCS4531K9II 5/20
Rated Power: 200kw
Rated Lipting Capacity: 45 ton
No-load speed: 28 km/h
Fully loaded speed: 25 km/h
Max Lifting Height: 15100mm
Total Vehicle Curb Weight: 73500kg
Engine: Cummins brand
Unlike fixed crane systems, the container reach stacker can operate effectively in crowded or restricted environments. Its relatively compact design, paired with strong lifting power, enables operators to manage container movement even in narrow yards.
This efficiency reduces the need for heavy infrastructure investment, while still allowing logistics providers in Uganda to remain adaptable to changing operational demands. Because of this, the container reach stacker machine is widely used in both busy container terminals and rugged working conditions.
One of the reasons behind its durability is the robust chassis. This solid frame is engineered to withstand the pressures of tough ground surfaces while also holding the motor, transmission, and other key systems.
Reinforced axles and large pneumatic tires further support stable mobility, giving the equipment the ability to transport heavy containers safely across rough or uneven ground. These features ensure that the 45 ton reach stacker performs reliably even in demanding outdoor settings.

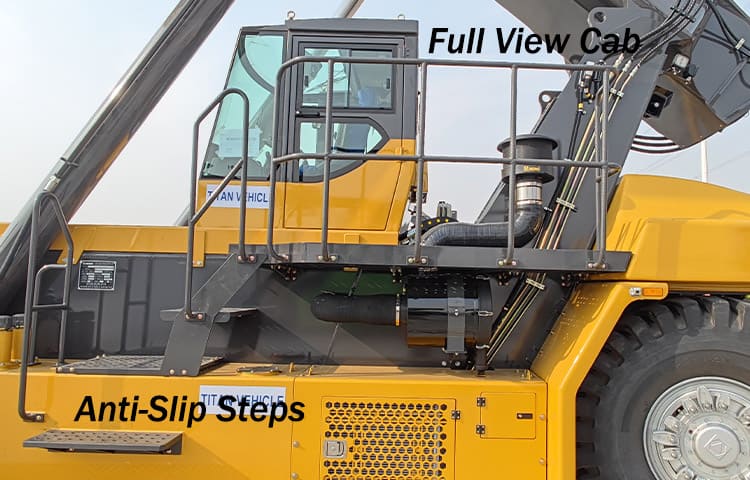

The operator's cabin, located above the chassis, is designed to improve visibility and safety. From this elevated position, drivers have a clear view of the yard, which is critical in busy working areas. The cabin interior balances comfort with functionality, providing joystick controls, digital displays, and diagnostic tools that allow operators to monitor machine performance in real time. The ergonomic arrangement helps reduce fatigue, enabling drivers to handle containers with speed and accuracy while maintaining safety.

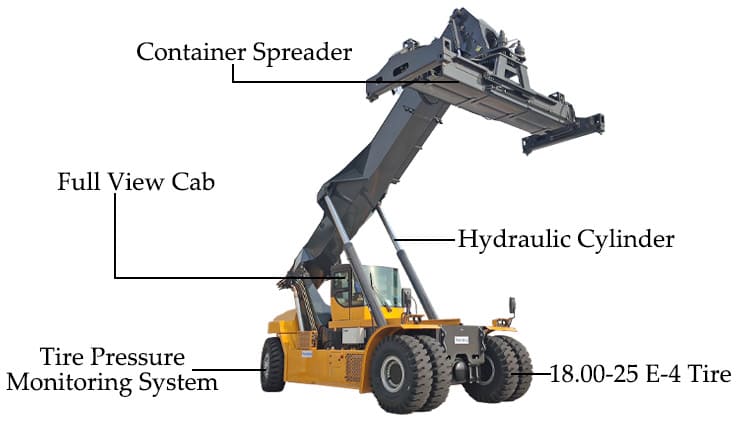

Central to the container reach stacker performance is its lifting system. The crane arm, constructed from high-strength steel, is built to extend, tilt, and reach containers positioned at different heights or depths.
Its heavy-duty design ensures reliable operation during continuous use. Hydraulic cylinders supply the power needed for smooth and controlled movement, which is especially important in confined areas where careful handling is required.

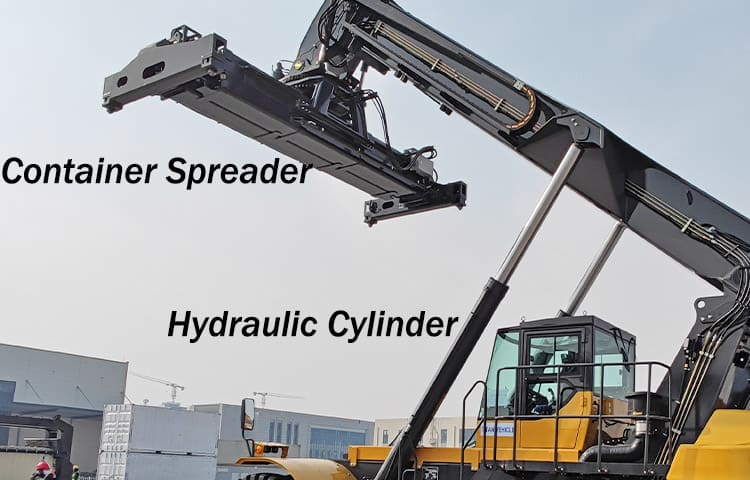

Attached to the crane arm is the container spreader, the component that locks onto the top corners of containers using a twist-lock mechanism. This spreader can adjust to hold both 20-foot and 40-foot containers.
Many 45 ton reach stacker models also feature alignment tools or sensors that streamline the locking process. These additions reduce preparation time, increase handling efficiency, and improve safety, important benefits in Uganda's fast-moving container yards.
The hydraulic system plays a critical role in the overall operation of the container reach stacker. It powers the lifting arm, operates the spreader, and in some cases supports steering. A well-engineered hydraulic setup ensures reliable responsiveness and reduces energy loss. This allows for smoother handling and provides operators with accurate control, which in turn helps minimize strain during long shifts.

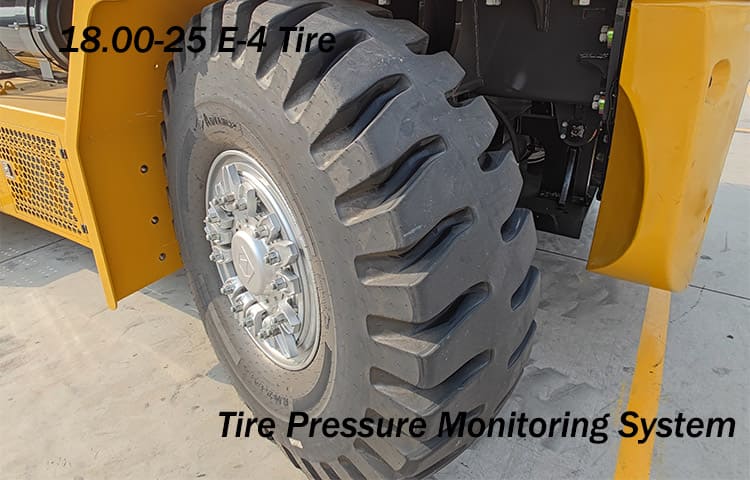

Safety considerations are integrated throughout the design of the 45 ton reach stacker. Load monitoring systems guard against the risk of overloading, while tire pressure sensors provide early warnings of potential issues.
Advanced models may include rear-view cameras, radar sensors, and anti-rollover systems for added protection of both workers and cargo. A rear counterweight ensures balance during heavy lifts, and stabilizers can be deployed when operating on uneven or sloped ground.
From the strong chassis and durable crane arm to the refined operator cabin and hydraulic system, every component of the container reach stacker is built to support efficient and secure container handling.
Its versatility makes it especially valuable in Uganda, where logistics providers must balance limited space, challenging ground conditions, and the need for dependable performance. For ports, rail yards, and logistics hubs alike, the 45 ton container reach stacker continues to be a trusted solution for keeping container operations smooth and reliable.
