TITAN designs its flatbed trailer range to meet the operational demands of modern container transport, especially for logistics companies handling frequent port transfers, inland distribution, and cross-border freight movement. Engineered to carry both 20-foot and 40-foot containers, each flatbed trailer for sale offers balanced load support, predictable handling, and long-term structural reliability.
Dimension: 12500mm*2500mm*1630mm
Loading capacity: 60 ton
Side Beam: 160mm high
Axles: 4 axles, TITAN brand, 13 ton
Tire: 11R22.5, 16 units
Suspension: mechanical suspension
Leaf Spring:10 layers
Bumper: 4mm thickened bumper
Landing Gear: 28 ton, JOST brand
Lamp: LED lamp with anti-theft net
The structural foundation of every flatbed trailer begins with a reinforced main beam fabricated from low-carbon, high-strength alloy steel. Compared with standard structural steel, this material provides superior tensile capacity and deformation resistance, allowing the frame to withstand heavy container loads without compromising alignment.
Through optimized beam geometry, stress is distributed evenly across the chassis, ensuring the flatbed trailer for sale maintains its integrity during repeated loading cycles common in Uganda’s high-frequency logistics operations.
Critical load-bearing areas of the frame are assembled using automated submerged arc welding. This precision-controlled process produces deeper and more uniform weld seams than manual welding, significantly improving fatigue resistance. As a result, the flatbed trailer demonstrates enhanced durability when operating on uneven roads, access ramps, and intermodal transfer zones frequently encountered throughout Uganda.
To further reinforce the chassis, high-stress sections such as the gooseneck area are strengthened with additional steel plating. This reinforcement helps the flatbed trailer for sale resist bending forces generated by sudden braking, uneven cargo distribution, or sharp directional changes. By minimizing structural flex, the design supports consistent handling behavior and extends the service life of the flatbed trailer, even under demanding transport conditions.
Surface protection is another key factor influencing durability. Each flatbed trailer undergoes a powder-spraying process followed by controlled high-temperature baking. While this treatment involves higher upfront cost, it significantly improves resistance to abrasion, ultraviolet exposure, and coating detachment.
For fleet owners in Uganda, where dust, humidity, and seasonal rainfall accelerate corrosion, this finish helps preserve appearance and reduces long-term maintenance expenses—an important consideration when evaluating overall flatbed trailer prices.

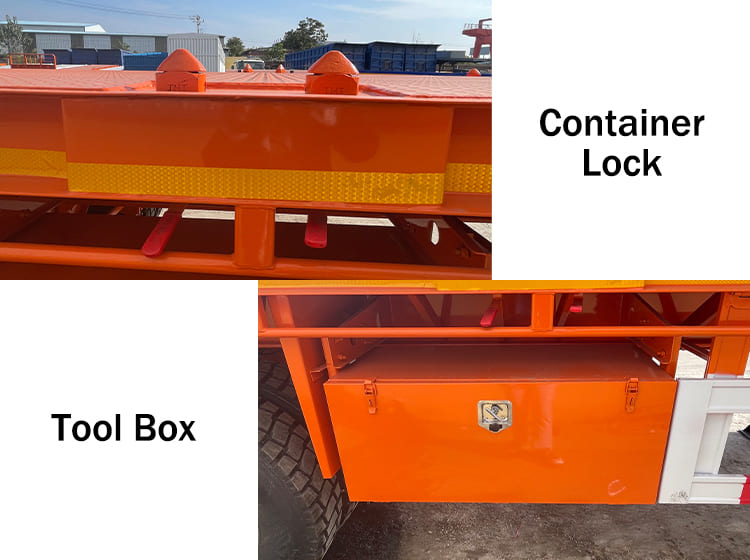

The cargo deck of the flatbed trailer for sale is constructed from 3 mm high-strength alloy steel plate. Its textured surface increases friction between the deck and container base, limiting cargo movement during braking or cornering. Additionally, the deck material resists moisture penetration and salt exposure, helping the flatbed trailer perform reliably in coastal or high-humidity transport zones within Uganda.
Running gear design emphasizes stability and load endurance. Heavy-duty axles rated at 13 tons provide consistent load-bearing capacity while reducing the risk of deformation under full payload.

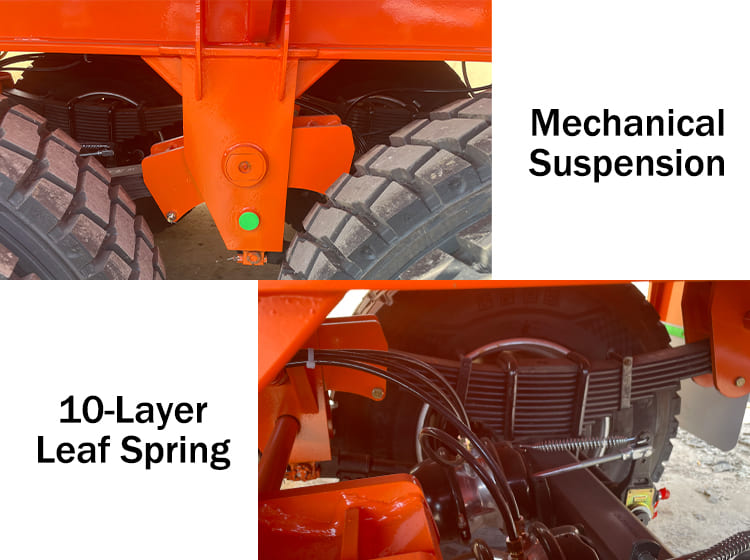

The mechanical suspension system incorporates multi-leaf springs paired with a central balance pin, allowing weight to be evenly distributed across all axles. Reinforced mounting points absorb road shock and vibration, ensuring the flatbed trailer for sale maintains chassis stability on gravel roads and secondary routes common in Uganda.

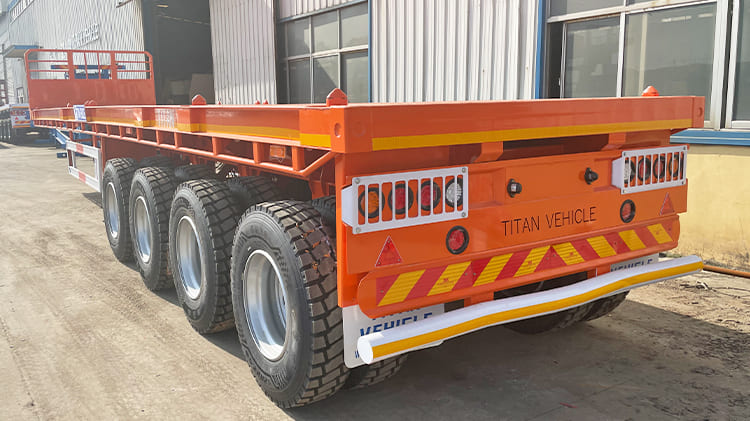

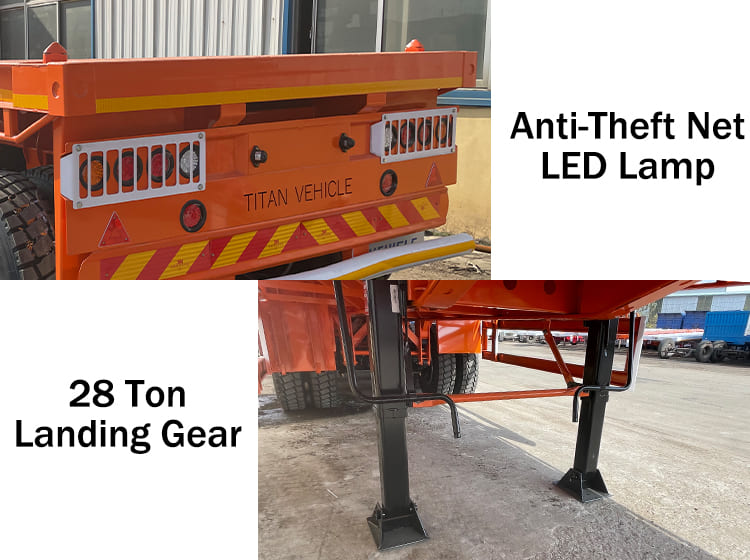

Lighting and electrical protection are also carefully addressed. Each flatbed trailer is equipped with a full LED lighting system that delivers strong illumination, low power consumption, and excellent vibration resistance. Anti-theft lamp housings protect wiring and fixtures when the flatbed trailer for sale is parked in unsecured locations, improving nighttime safety and reducing downtime caused by electrical faults.
From a cost-efficiency perspective, TITAN optimizes structural design and component selection to ensure competitive flatbed trailer prices without compromising reliability. Reduced repainting frequency, extended component life, and lower maintenance demands contribute to long-term operational savings, making these flatbed trailer prices attractive for logistics fleets expanding across Uganda.
Before export, each flatbed trailer for sale undergoes comprehensive protective treatment. All exposed steel surfaces are coated with anti-corrosion wax, after which the entire unit is wrapped in heavy-duty waterproof tarpaulin. This dual-layer protection shields the flatbed trailer from salt air, humidity, and moisture during ocean transport. Depending on logistics planning, delivery to Uganda can be arranged via container shipment or roll-on/roll-off vessels, ensuring safe arrival and immediate readiness for service.
