TITAN 's 3 axle flatbed trailer is engineered to move 20 and 40 foot containers with high efficiency, making it a practical choice for port transfers, inland haulage and intermodal operations. The chassis geometry and coupling layout of each 3 axle flatbed trailer are calculated to channel loads evenly through the main frame, reducing local stress concentrations and limiting fatigue over years of heavy service.
Dimension: 12500mm*2500mm*1630mm
Loading capacity: 60 ton
Side Beam: 160mm high
Axles: 3 axles, TITAN brand, 13 ton
Tire: 11R22.5, 12 units
Suspension: mechanical suspension
Leaf Spring:10 layers
Bumper: 4mm thickened bumper
Landing Gear: 28 ton, JOST brand
Lamp: LED lamp with anti theft net
Structural integrity begins with a main beam formed from Q355 low carbon, high strength alloy steel. This backbone gives the flatbed trailer the rigidity required to support concentrated cargo without permanent deformation. Critical joints and high load areas are welded using automated submerged arc processes to achieve deep, uniform penetration and consistent weld quality; this welding approach improves the flatbed trailer 's resistance to cracking and extends service intervals between major repairs.
High stress zones such as the gooseneck are reinforced with double layer steel plating so the 3 axle flatbed trailer can resist bending and torsion when carrying irregular or heavy consignments. These local reinforcements preserve frame alignment and contribute to stable road manners even on rough approaches or during sudden manoeuvres. Fleet operators in Uganda benefit directly from this predictability, as reduced frame distortion lowers lifetime maintenance and resale depreciation.
Surface protection is another area where TITAN differentiates its product from standard builds. Every flatbed trailer receives an electrostatic powder coat followed by high temperature baking. Although this finish raises initial production cost, it delivers superior scratch resistance, UV stability and adhesion versus conventional wet paint, which in turn reduces repaint cycles and long term upkeep.
In coastal and inland corridors of Uganda, that durable finish helps the 3 axle flatbed trailer maintain both functionality and a professional appearance under challenging environmental exposure.

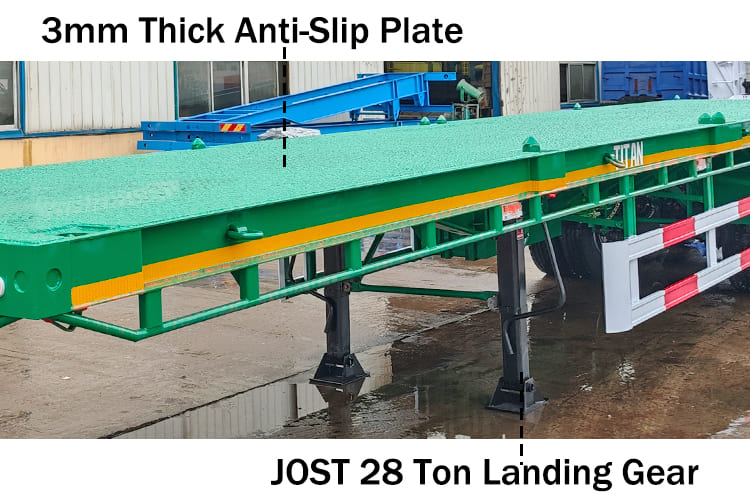

The deck uses a 3 mm high strength alloy steel plate with an anti slip pattern to increase traction and resist abrasion. This textured deck prevents cargo migration during acceleration, braking or cornering and protects the flatbed trailer against moisture and salt ingress, important for mixed use routes and frequent reloading. Twelve container twist locks are fitted to accommodate standard 20ft and 40ft boxes, enabling fast, secure installation and flexible load configurations.

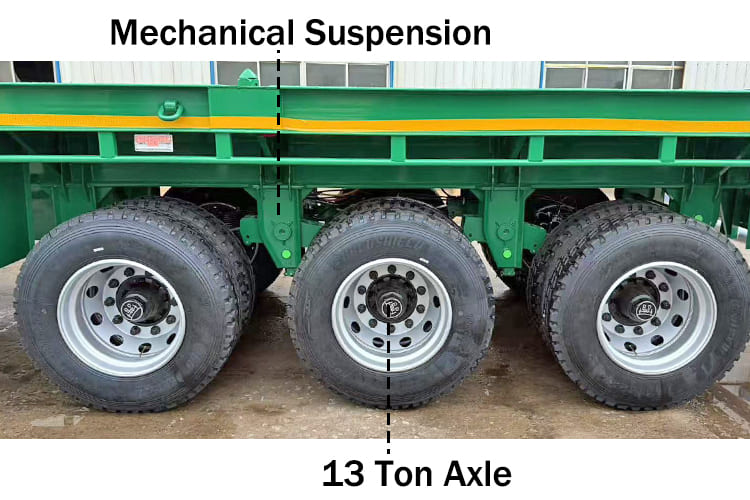

Running gear is specified for longevity: each axle on the 3 axle flatbed trailer is rated to 13 tons and designed to resist bending under repeated heavy loading. The suspension uses multi leaf springs with a 70 mm central balance pin plus reinforced front and rear mounts to damp road shocks and protect deck geometry. Together, axle ratings and suspension tuning ensure stable behaviour on gravel tracks, rural feeders and highway segments commonly used in Uganda.

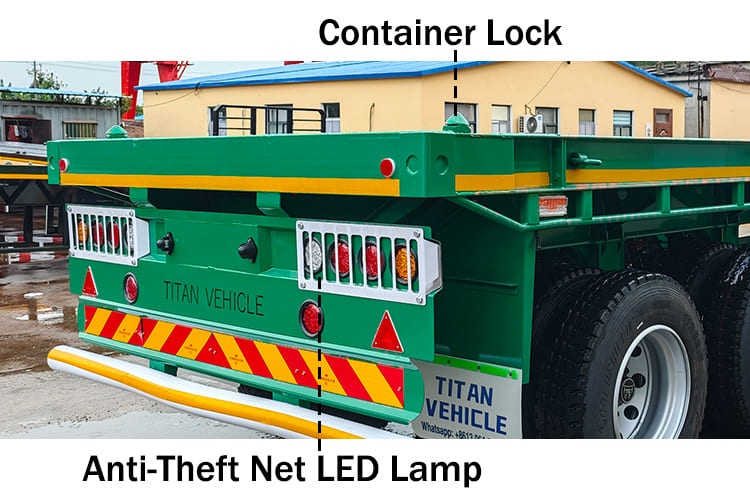

Electrical systems and lighting are chosen with serviceability in mind. A full LED package gives brighter, longer life illumination with greater resistance to vibration and moisture than traditional bulbs, while protected housings and anti theft features preserve fixtures and wiring during high risk stops. These practical choices reduce maintenance callouts and improve night time safety for operators of TITAN flatbed trailers.
For logistics planners who expect high utilisation and low lifecycle costs, TITAN 's approach makes its flatbed trailer lineup a competitive option. As one of the flatbed trailer manufacturers focused on real world durability, TITAN ensures that each 3 axle flatbed trailer remains a high value asset for fleets operating across Uganda and similar markets.
TITAN is one of the flatbed trailer manufacturers that also focuses on export preservation. Each 3 axle flatbed trailer is treated with an anti corrosion wax and then wrapped in a heavy duty waterproof tarpaulin, creating a two layer barrier against seawater and humid air. This attention from the factory results in units arriving ready to work, reducing reconditioning time for buyers in Uganda.
