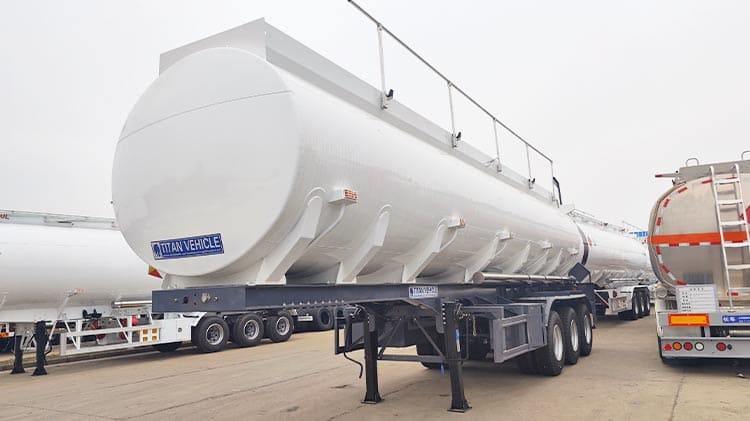

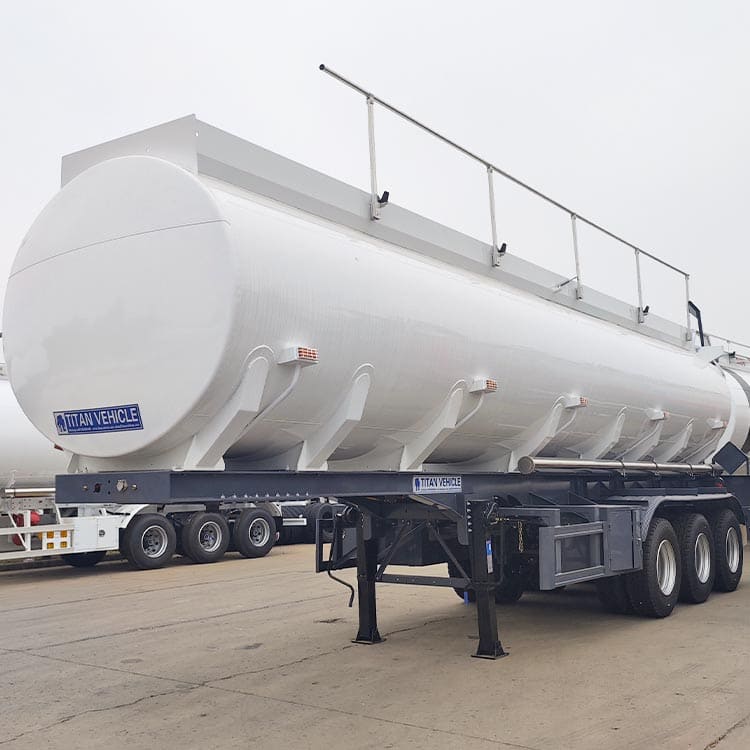

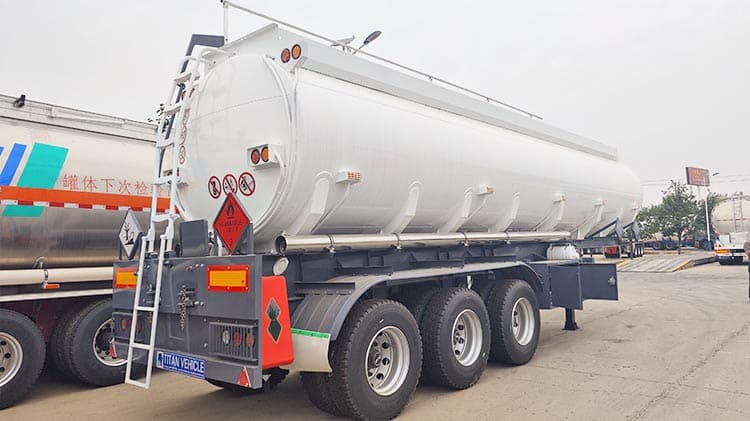

The fuel tanker trailer is specially engineered to ensure the safe and secure transportation of hazardous and flammable liquids, with particular attention given to sealing performance. Its structural design minimizes leakage risks, making it well-suited for long-distance fuel transport.
With a capacity of 45,000 liters, the fuel tanker trailer supports the bulk delivery of fuel, enabling transport companies to move large quantities in fewer trips which not only reduces fuel delivery frequency but also contributes to cost savings per liter transported, making a more efficient and cost-effective solution for long haul operations.
TITAN also offers customization options to meet diverse operational needs. Buyers in Uganda, for instance, can tailor the fuel tanker prices by choosing the tank volume, material composition, external paint, and structural reinforcements.

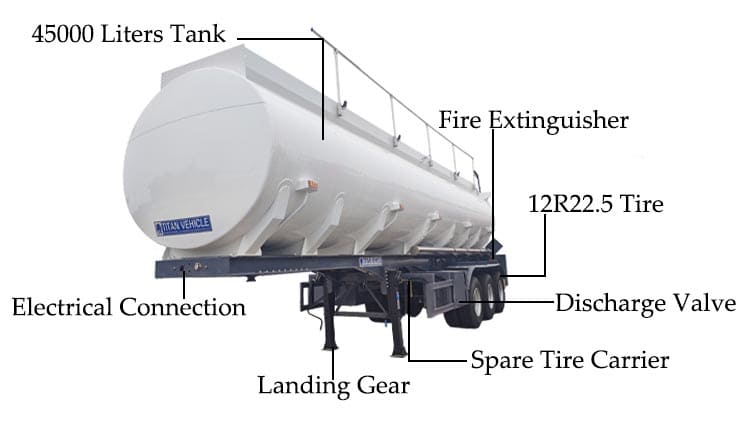

Total Dimension: 11700mm*2500mm*3800mm
Total volume(L): 45000L
Tanker Body Material: 5mm thick stainless steel
Manhole Cover: Carton steel

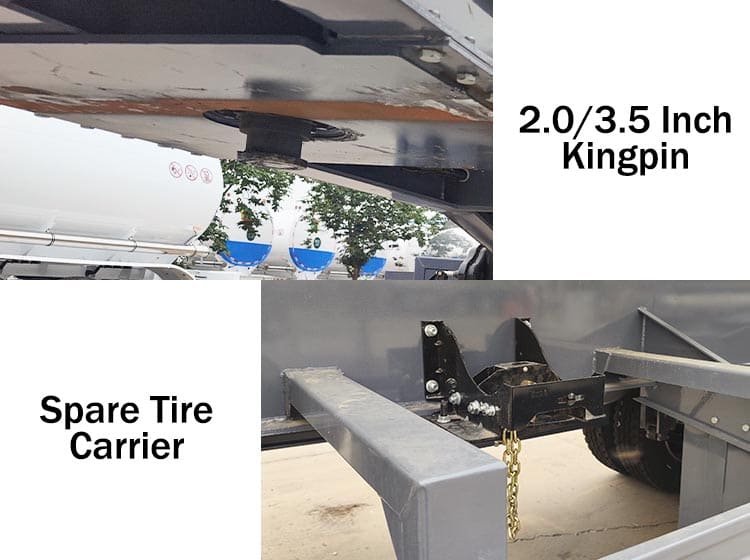

Kingpin: 2.0/3.5 inch type
Axle: 3 axles, TITAN brand, 13 ton
Landing Gear: 28 ton
Suspension: mechanical suspension
Leaf Spring: 10 layers

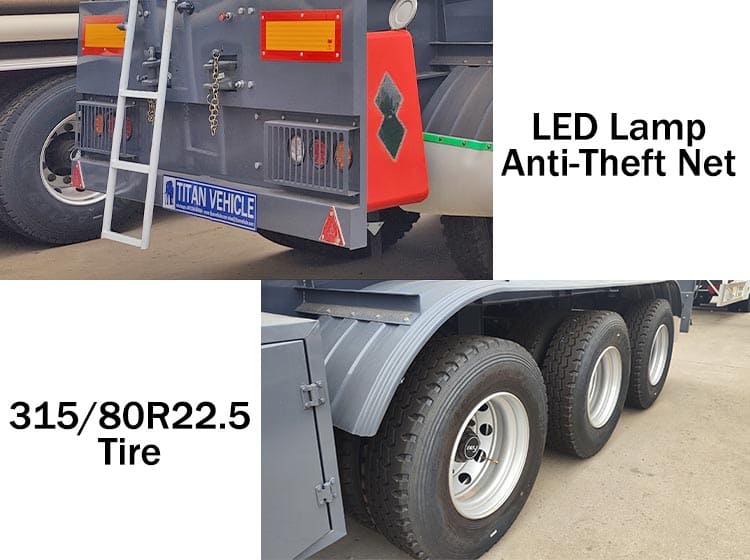

Tire: 12 units, 315/80R22.5
Lamp: LED Lamp with net
The fuel tanker trailer for sale tank body is manufactured using advanced welding techniques that promote both strength and longevity. One-sided welding combined with a double-sided forming method results in smooth, consistent weld seams that minimize the risk of weak spots. To further boost durability, longitudinal welding is applied to reduce the number of weld joints, which helps maintain tank strength under constant operational pressure.
To improve versatility, the oil discharge valve can be installed on either the left or right side of the fuel tanker trailer, depending on operational routines and regional traffic norms. The tank can also be internally divided into multiple sections which allows different types of fuel to be transported simultaneously without risk of cross-contamination.
Within these compartments, thickened wave-breaker plates are fitted to absorb liquid motion during transport. These structures stabilize the tank by minimizing the shifting of fuel, especially important on Uganda uneven roads.
An explosion-proof manhole is installed on top of the fuel tanker prices to enhance safety during emergencies. The sealed cover, built in line with European safety regulations, prevents the lid from detaching or opening if the fuel tanker trailer for sale rolls over which serves as a crucial safety barrier to reduce the chance of fuel leakage or fire under critical conditions.

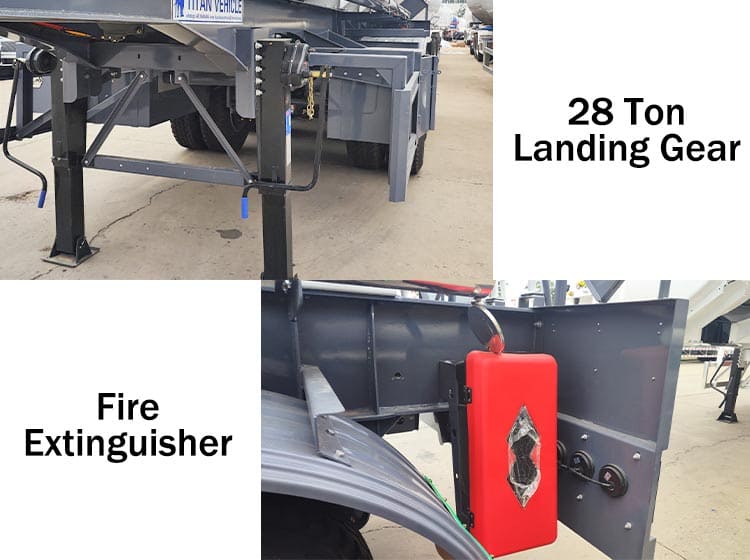

The fuel tanker trailer landing gear is also designed with strength and reliability in mind that is capable of supporting up to 28 tons of weight. The wide, heavy duty base ensures solid contact with the ground, offering improved stability during loading or unloading. The broader surface helps prevent sinking into soft or unstable terrain, particularly when the fuel tanker prices is fully loaded.
A mechanical suspension system is used to cushion the impact of poor road conditions, which are common in regions like Uganda. The fuel tanker trailer for sale suspension integrates multiple layers of leaf springs and features a 70mm central balance pin. The configuration allows the suspension to act as an effective buffer, reducing vibration and shock during transit. As a result, both the fuel and the components are better protected, and the overall service life of the fuel tanker trailer is extended.
The fuel tanker prices three-axle setup plays a vital role in managing weight distribution. The layout helps spread the load evenly across the entire frame and the tires, minimizing pressure on any one point. The axle significantly lowers the risk of tire damage or frame deformation, which can be a concern when carrying full loads over long distances. The axles work in tandem with the suspension system to absorb road shocks, enhancing stability and ensuring a safer, smoother journey.
Before delivery, each fuel tanker trailer for sale undergoes rigorous quality checks. These include pressure tests to verify the sealing and strength of the tank. Non-destructive testing methods are also employed to detect any welding flaws that could affect performance or safety during usage. These inspections are crucial to ensure the fuel tanker trailer is ready for long term operation under demanding transport conditions.
To maintain the fuel tanker trailer for sale quality during overseas delivery, TITAN implements a dedicated protection process. Each fuel tanker prices is coated with an anti-corrosion wax layer and wrapped with a waterproof cover. The dual-layer protection shields the fuel tanker trailer from sea moisture, salt air, and environmental exposure during shipping. These measures ensure that the fuel tanker trailer arrives in excellent condition, ready for immediate operation and built to last.
