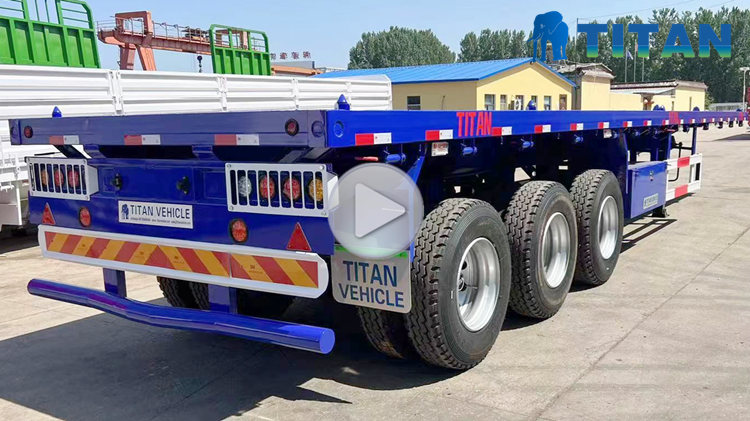

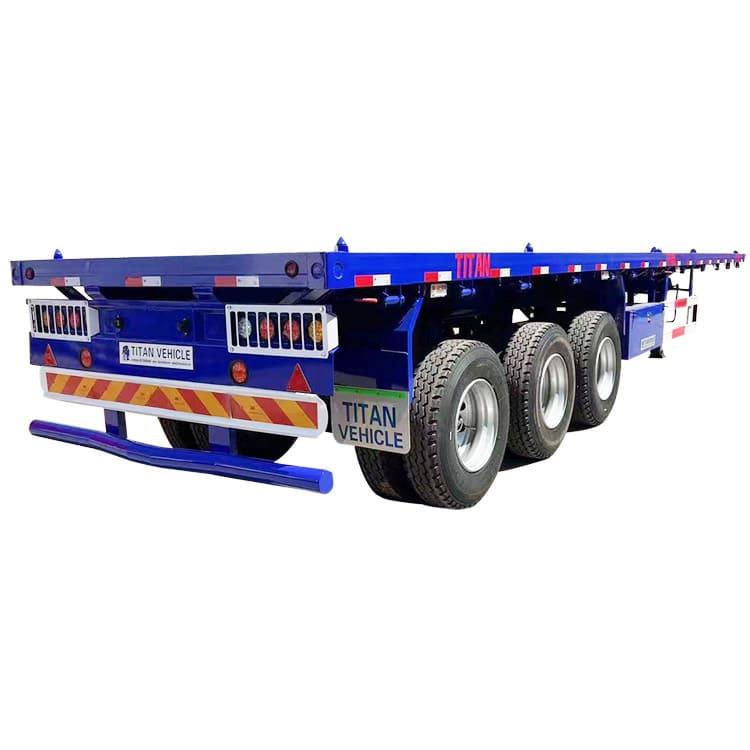

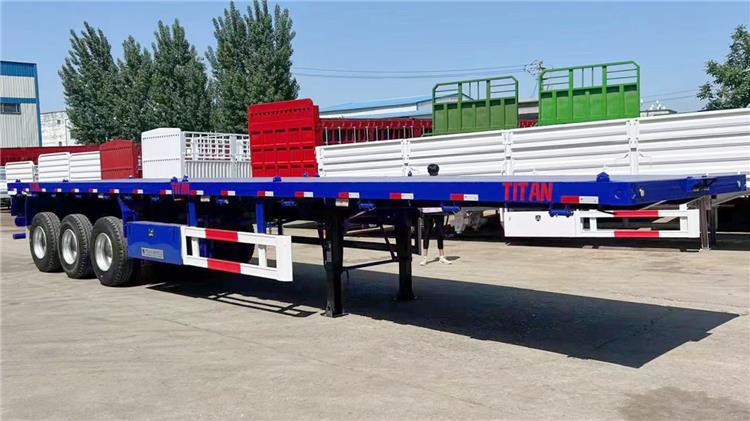

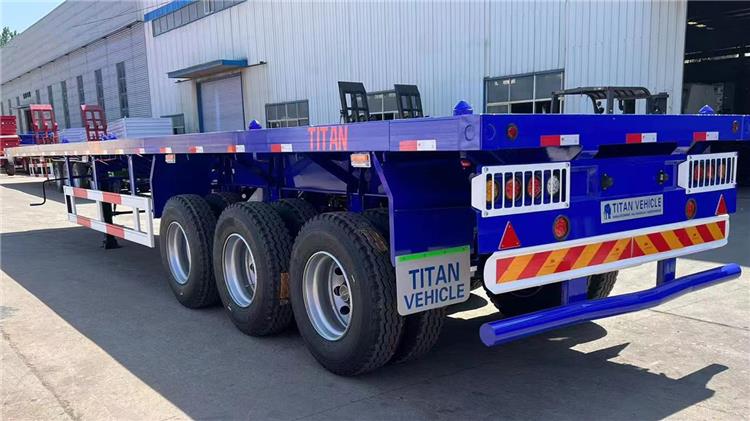

Triple axle platform semi trailer is a vehicle for transporting containers, usually used for long-distance freight. The Triple axle platform semi trailer is designed so that it can travel on the highway and load and unload quickly.

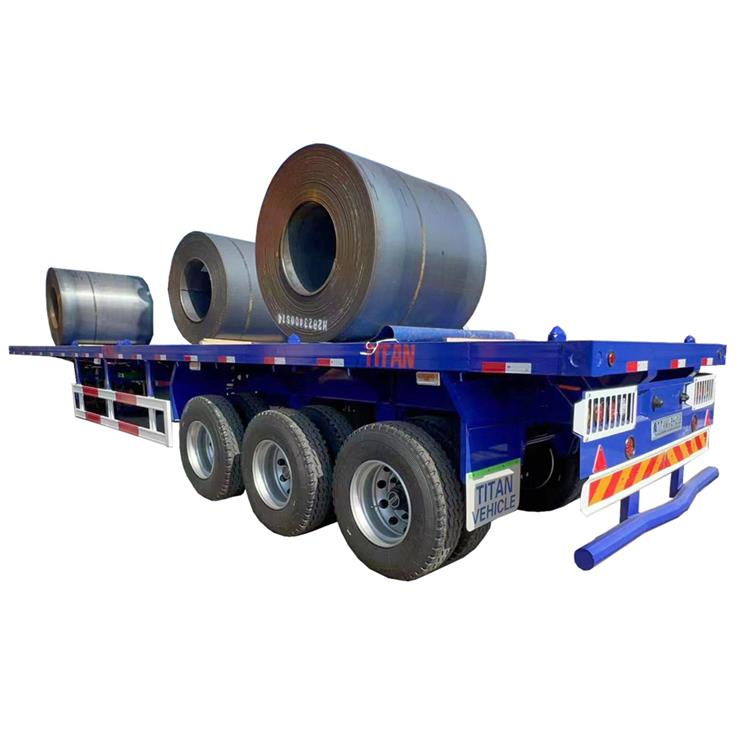

Although the standard load of Triple axle platform semi trailer is 60 tons, it can carry 80 tons without any problem.And as you can see, Triple axle platform semi trailer didn't bend or warp even though it carried so much weight.

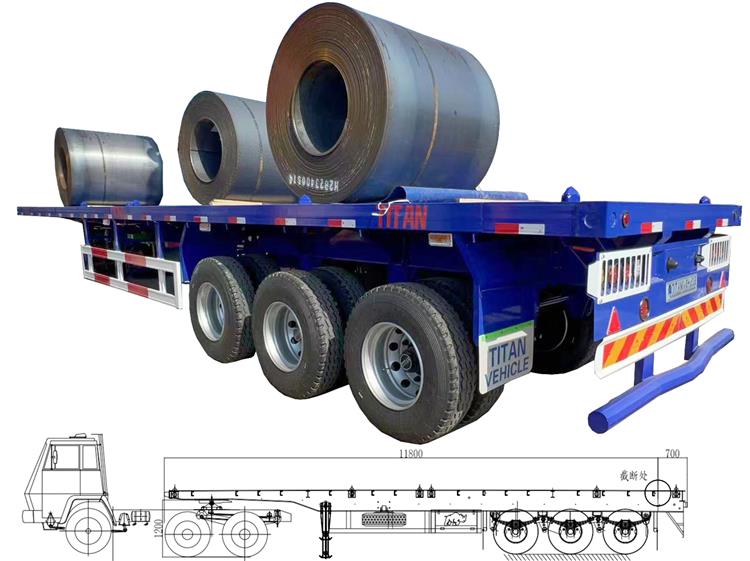

Triple Axle Platform Semi Trailer Price In Uganda - Drawing of Triple Axle Platform Semi Trailer
Triple Axle Platform Semi Trailer Price In Uganda
Triple axle platform semi trailer reinforces the main beam.As for the gooseneck parts of the main beam,the middle plate has been reinforced by double plate.

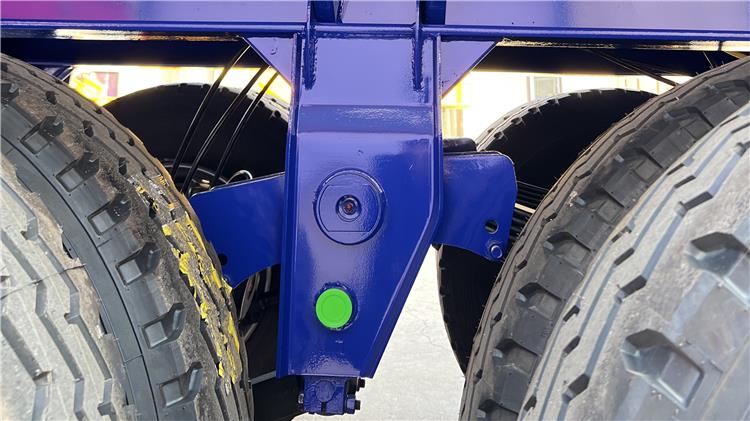

Triple axle platform semi trailer suspension adopts triple reinforcement,the diameter of kin pin is 70 mm, which makes the suspension much stronger.

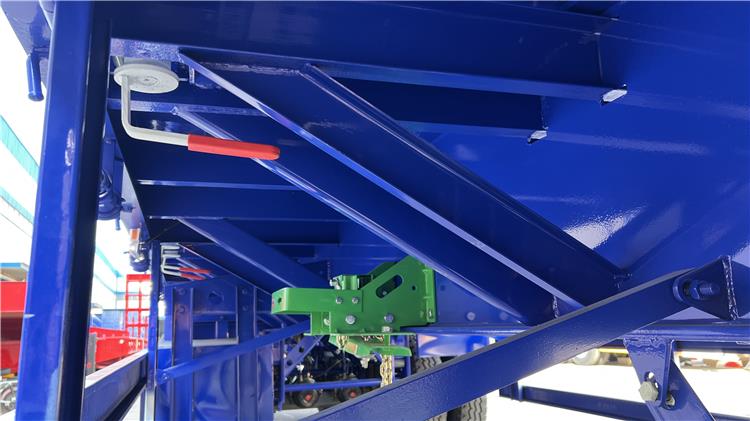

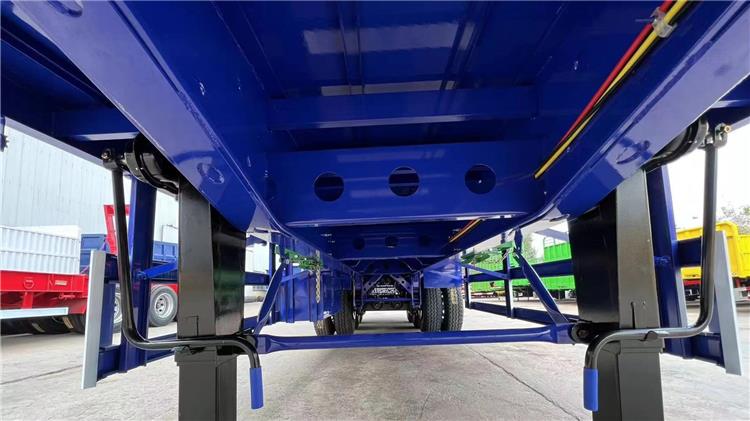

Triple axle platform semi trailer uses high-density inclined support to support the trailer's beams,every beam has its own support.And the distance between every two inclined support is only 50 cm.
Triple axle platform semi trailer use 160 mm thicken steel to produce the side beam. Triple axle platform semi trailer uses 3 mm thick anti-skid platform, which is strong and durable, and not easy to deform.
Model: triple axle platform semi trailer
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Suspension: Mechanical suspension or Air suspension
King Pin: JOST brand 2.0 or 3.5 inch
Landing Gear: JOST brand D200T or Chinese brand 28tons
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel
Platform: 3mm-thick checkered plate
Twist Locks: 4,8,12 sets
