The load-bearing capacity of a low loader truck is determined according to the design and manufacturing standards of the vehicle. Usually, the load-bearing range is between 40-200 tons. The specific load-bearing capacity also depends on the size of the vehicle, the number of tires, the frame structure, material strength and Suspension system and other factors.

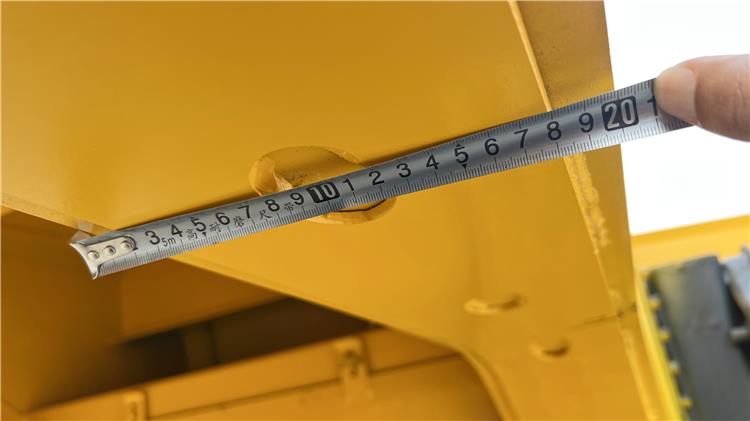

The supports under the low loader truck also adopts H-type design,the thickness of upper,middle and bottom plate is 8 mm,6 mm and 8 mm.The distance between every supports is only 55 cm

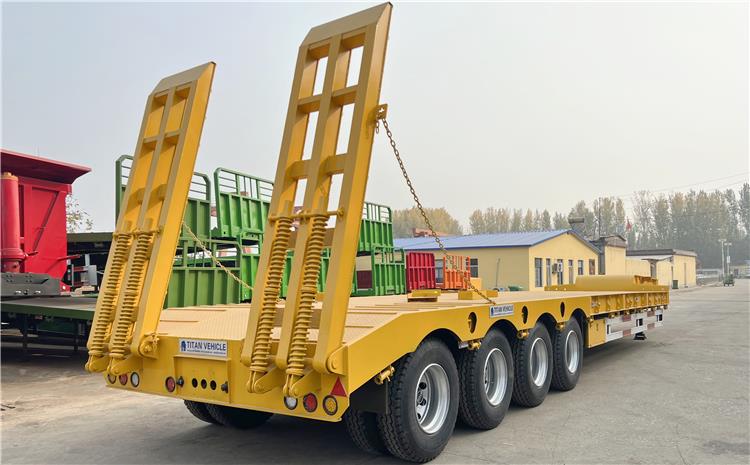

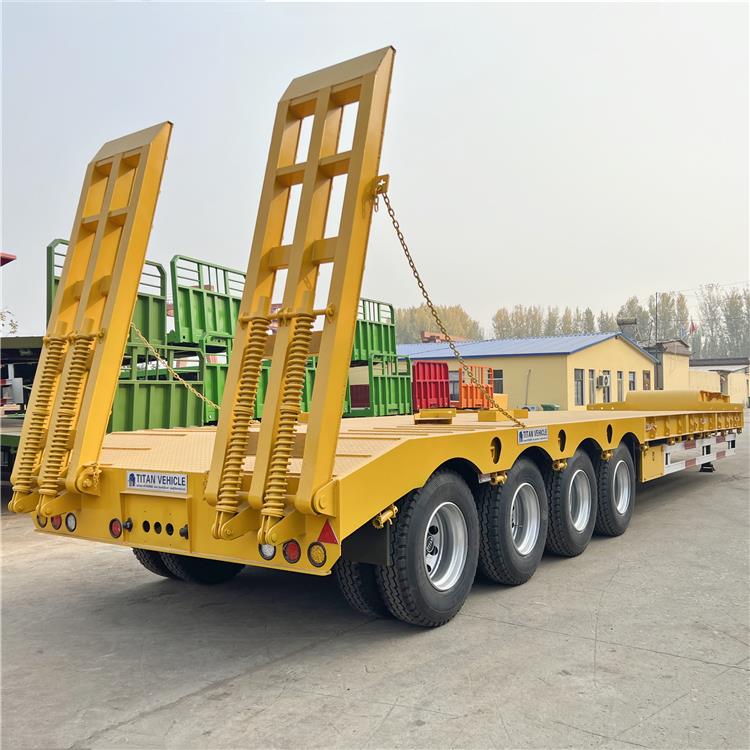

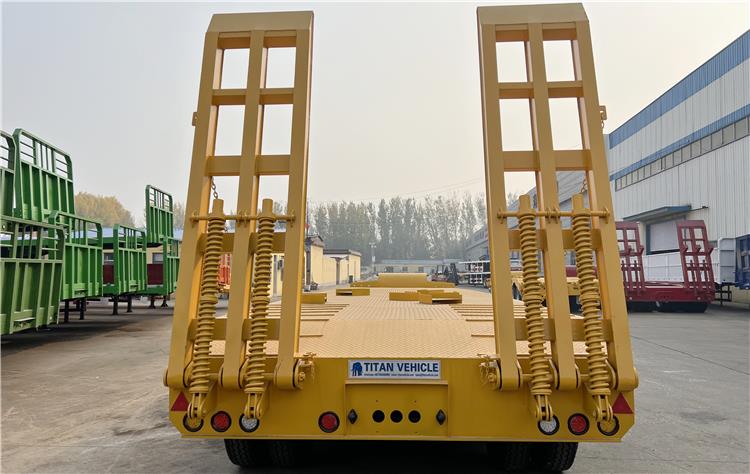

The low loader trailer mechanical ramp of the trailer,which is welded by 4 pieces high strength steel board. Low loader for sale adopts double high strength steel,one person can operation it easily.
This low loader for sale adopts heavy duty mechanical suspension,the thickness of the suspension is 10 mm and the diameter of the kingpin is 70 mm
Low loader for sale is made of T700 high strength steel and it adopts H-type design,the thickness of upper, middle and bottom plate is 10 mm, 8 mm and 10 mm. It will never deform even if it carries heavy loads.

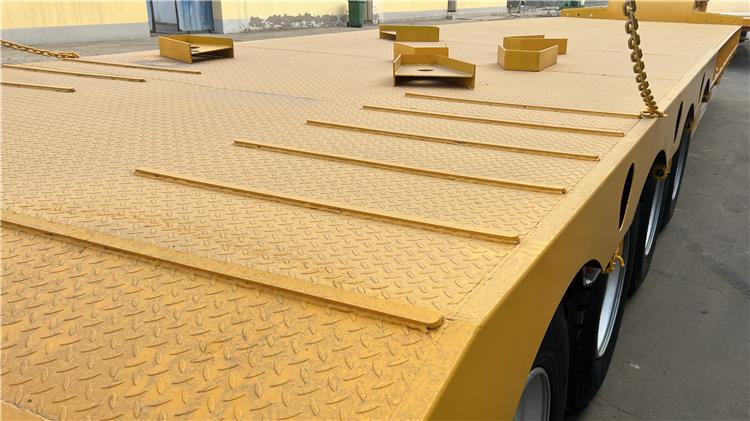

Low loader truck the platform of our low loader trailer, whose thickness is 5 mm.

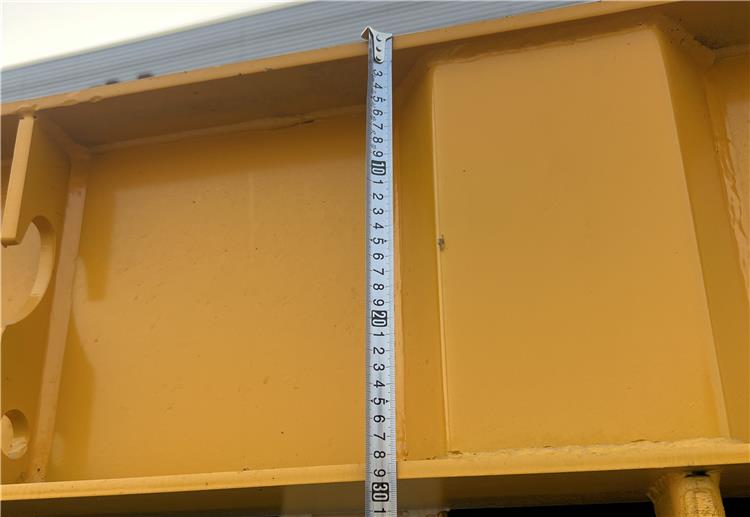

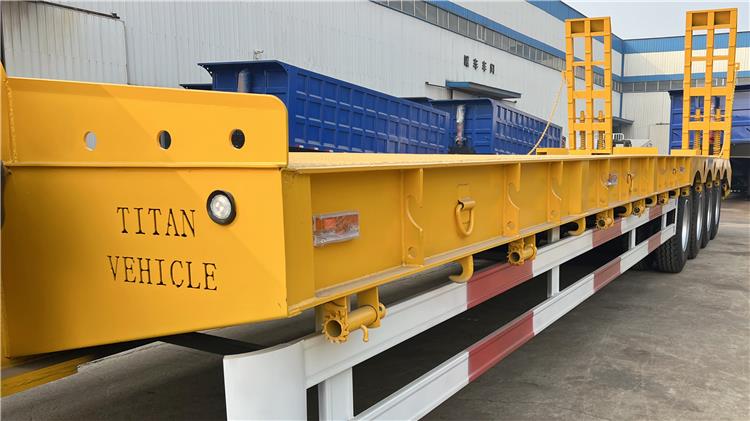

Low loader trailer the height of the side beam is 300 mm,the width is 140 mm. Lowbed trailer who has higher and wider side beam will has more loading capacity.
Overall dimension: 15800*3000*1250 mm
Loading capacity(T): 100 Tons
Work platform Length: 12000 mm
Material: Q460C high strength steel
Main beam:middle: 550*16 mm;bottom:20*230 mm;upper:20*230 mm
Side beam: 300mm*140mm H-type (10/8/10mm)
Bottom platform: 5mm, checkered plate
Suspension: 10mm thickness,70 mm diameter kin pin
Landing gear: 28 tons
Ramp: Double spring ramp
