CIMC container skeletal trailer for sale is a semi-trailer specially used for transporting containers. Its structure is mainly composed of a frame, tires, suspension system, braking system, tow hook and so on.

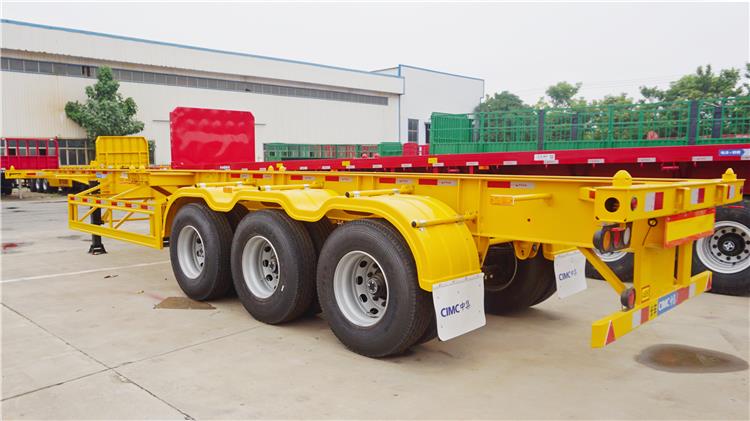

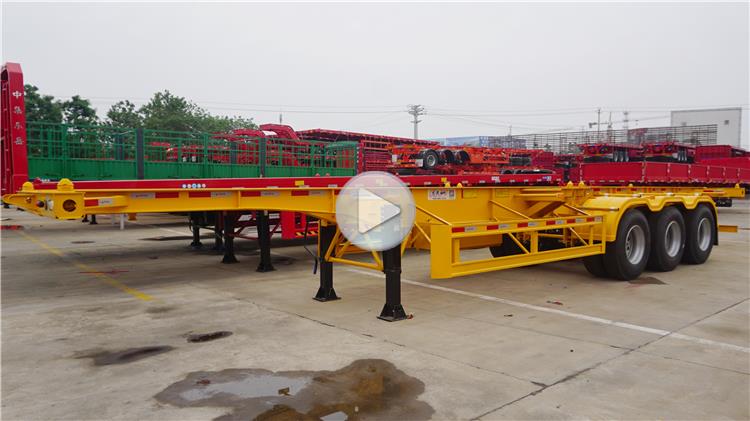

CIMC Semi Trailer | 40 ft Container Skeleton Trailer for Sale In Uganda
CIMC Container skeletal trailer for sale in uganda equips with mechanical suspension.

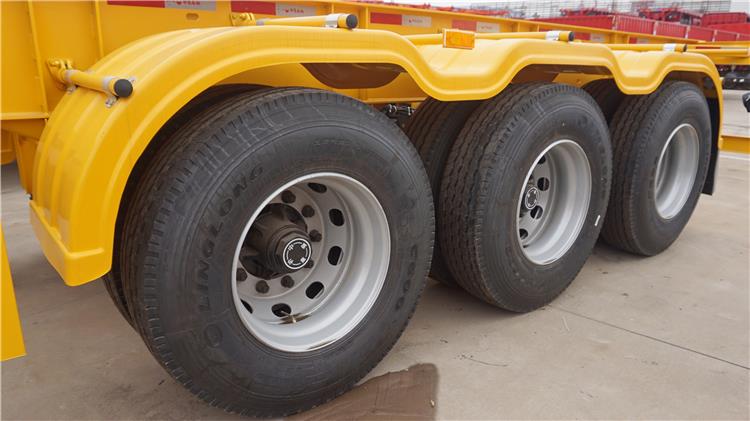

Container skeletal trailer for sale in uganda adopts 12R22.5 tires

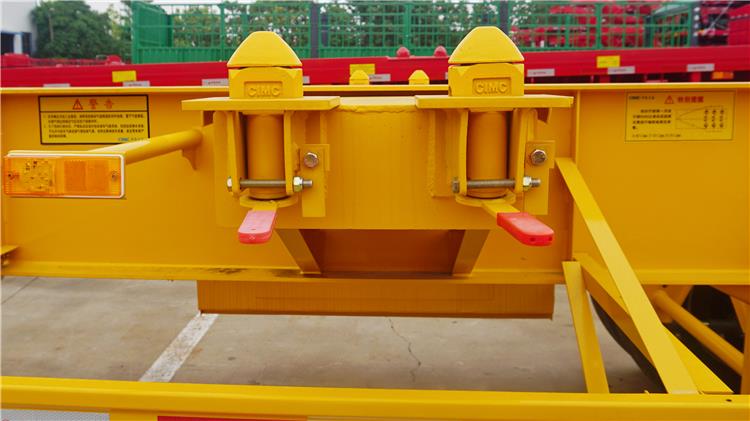

Container skeletal trailer for sale in Uganda also equips 12 sets of container locks.

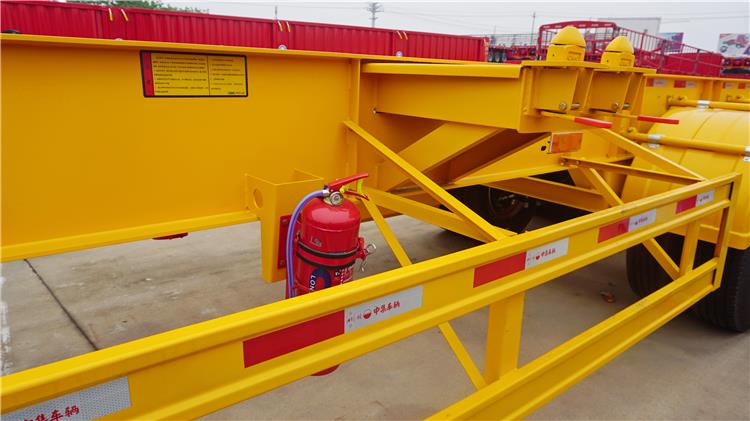

The container skeletal trailer for sale in Uganda height of the main beam is 500 mm, thickness is 8 mm; the thickness of upper plate is 14 mm and the thickness of bottom plate is 16 mm.The width of the main beam is 140 mm
Dimension(mm): 12360x2500x1520mm
Axles: 3 axles, 13T/16T , FUWA/ BPW
Tire: 12 units, 12.00R22.5 or 315/80R22.5

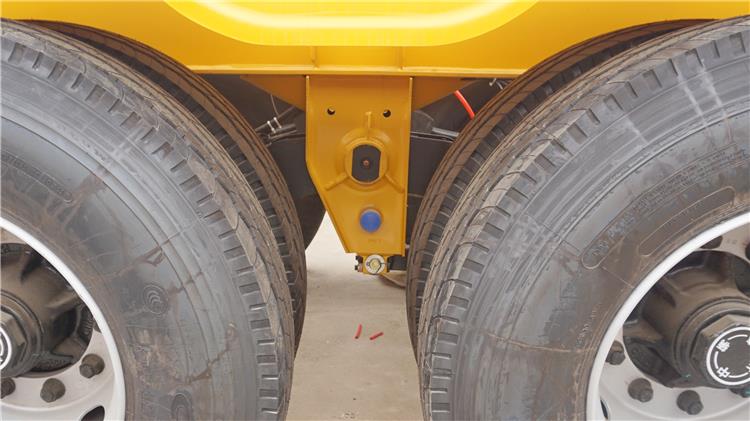

Suspension: Mechanical suspension
King Pin: JOST brand 2.0 or 3.5 inches (bolted or welded)
Landing Gear: JOST brand D200T
Twist Locks: 4,8,12 sets (lifting or screw type)
