Designed for modern logistics demands, the cargo sidewall trailer provides a flexible and efficient solution for transporting irregular, unpackaged, or oversized goods. Its open and modular layout allows fast loading and unloading, making it a preferred choice for operators handling diverse cargo types where accessibility and adaptability are critical.
Loading Capacity: 60 ton
Floor Plate: 3mm thick pattern plate
Axles: 3 axles, 13 ton, TITAN brand
Suspension: mechanical suspension
Leaf Spring: 10 layers
Tire: 12 units
Bumper: thickened bumper
Landing Gear: 28 ton, JOST
Lamp: LED lamp with anti-theft design
The exterior of each china side wall trailer is built for endurance as well as presentation. Every unit receives a high-quality powder coating followed by a high-temperature baking process. In Uganda, where trailers are exposed to both humid lowlands and dusty inland roads, this advanced coating minimizes repainting frequency and extends service life. The resilient finish ensures the china side wall trailer maintains its professional look and protective strength even after years of operation in demanding climates.
On the deck, TITAN equips the cargo sidewall trailer with an industrial-grade patterned steel plate that adds strength and traction. The thick, anti-slip surface helps prevent cargo movement during acceleration, braking, or sharp turns while resisting moisture and abrasion. This reinforcement is standard on every side wall trailer, which often carries mixed loads such as machinery, construction materials, or palletized freight. The rugged floor structure not only supports high payloads but also enhances stability during heavy-duty usage, a crucial benefit for operators navigating Uganda's varied terrain.
The chassis design focuses on strength and long-term reliability. The main frame of the side wall trailer is engineered with an integrated beam layout where the longitudinal frame is solidly welded to reinforced cross members.
These cross members are made from thick 100mm channel steel and positioned with 500mm spacing, strengthened by diagonal bracing to ensure uniform stress distribution. This precision welding and structural alignment prevent deformation or frame twisting when the china side wall trailer carries full-capacity loads over rough or uneven roads.
Each cargo sidewall trailer is fitted with a robust 13-ton axle assembly built to withstand rough road conditions and high-frequency use. The heavy-duty axle group minimizes fatigue cracks and ensures smooth, consistent handling under pressure.
A proven mechanical suspension system utilizing high-strength leaf springs absorbs road shocks, reducing vibration transfer to the chassis and cargo. This combination provides better ride quality and prolongs the service life of both the side wall trailer and the goods being transported.

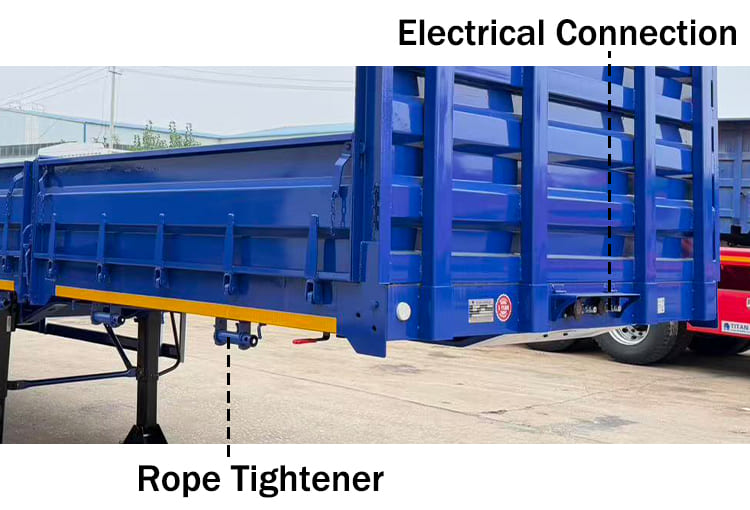

Modular sideboards make the china side wall trailer easy to reconfigure for varying load sizes. Operators can quickly fold or remove panels to create open sections for oversized cargo or simplify side loading with forklifts.

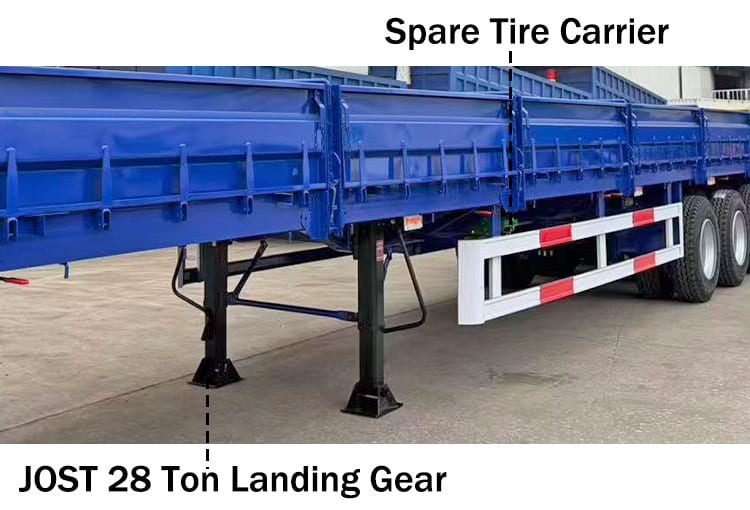

The trailer's landing gear is rated for up to 28 tons, providing a stable base when detached from the tractor unit. Its wide foot design prevents sinking on soft or uneven surfaces, ensuring smooth loading and unloading processes at work sites or depots across Uganda.

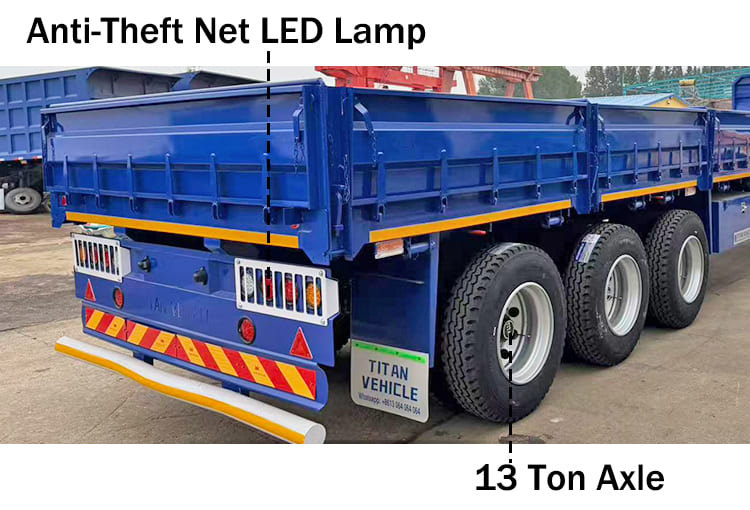

LED lighting runs along the body of each cargo sidewall trailer, offering bright, energy-efficient illumination that improves safety during night operations. The LED units consume less power, require minimal maintenance, and perform reliably under vibration and moisture exposure important advantages for long-distance transport in Uganda's mixed road environments.
Combined with its reinforced structure and protective coating, these safety systems make the side wall trailer a trusted workhorse for fleet operators seeking high uptime and low operating costs.
For export, TITAN employs meticulous preservation measures to maintain product quality during ocean transport. Each china side wall trailer is fully coated with an anti-corrosion wax layer and then wrapped in a waterproof tarpaulin.
This dual protection guards against salt spray and tropical humidity during shipment, ensuring that the cargo sidewall trailer arrives in pristine condition and ready for immediate deployment. The care taken in packing reflects TITAN's commitment to long-lasting performance and customer satisfaction worldwide.
