Drop side trailers for sale in Uganda are usually used in long-distance freight, logistics distribution, large supermarkets, etc., to transport various goods, such as building materials, furniture, etc.

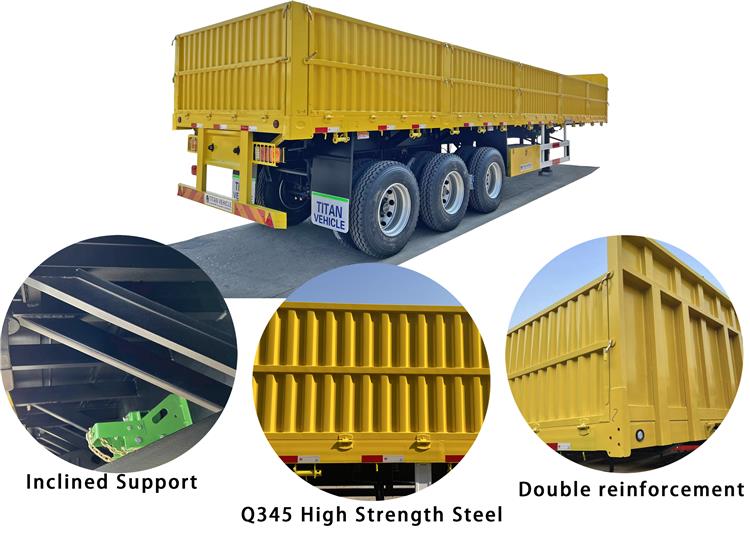

Drop side trailer for sale in Uganda use 6 beams to produce the frame of the flatbed trailer,which not only makes the trailer's frame stronger, but also makes the platform never sag. Drop side trailer for sale in Uganda uses high-density inclined support to support the trailer's beams,every beam has its own support.And the distance between every two inclined support is only 50 cm.
Drop side trailer for sale in Uganda adopts advanced submerged arc welding technique to produce the trailer,there is no welding interface between middle,bottom and upper plate of main beam.
Drop side trailer for sale in Uganda the platform thickness is 3 mm. We can also add 12 units container locks on it. Drop side trailer for sale in Uganda the sidewall is make of Q345 high strength steel and the thickness of the sidewall is 1.5 mm.
Drop side trailer for sale in Uganda also uses 7 tubes to reinforce the front wall and the 5 middle tubes are double.

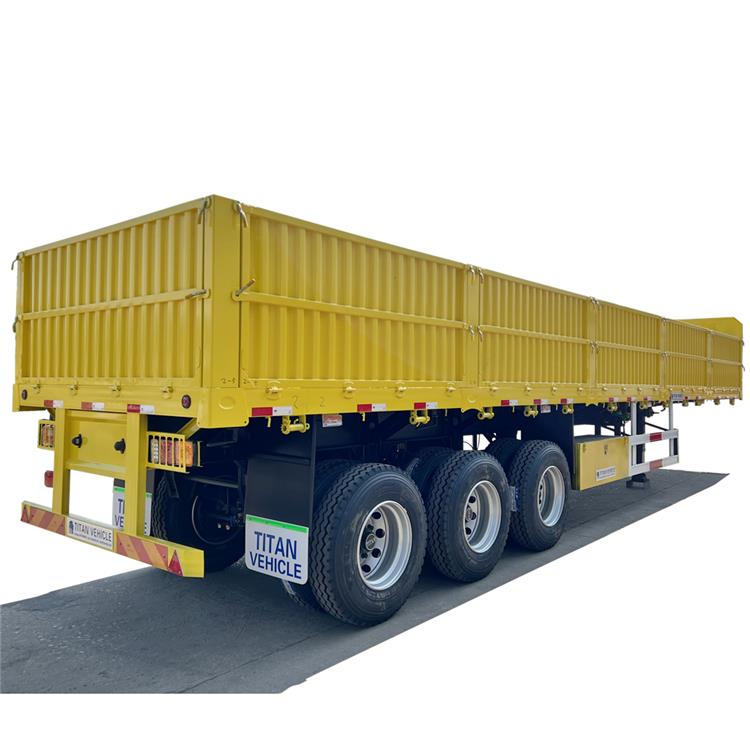

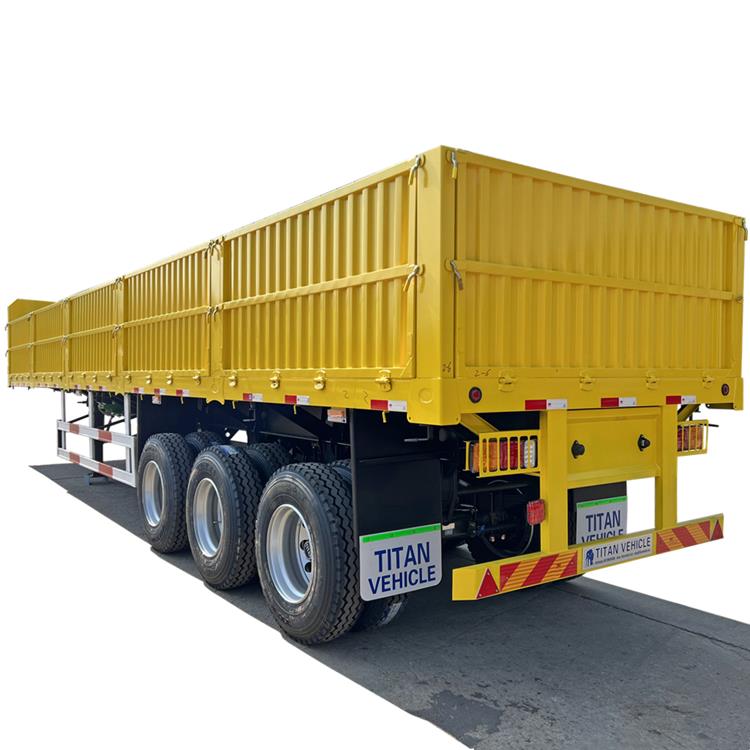

80 Ton Drop Side Trailer for Sale In Uganda

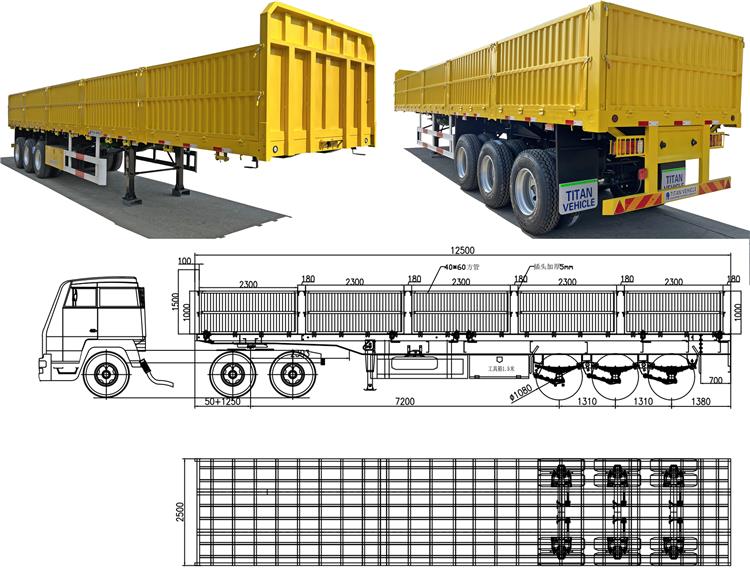

Dimension(mm): 12500x2800x3260mm
Trailer Sides: 1250mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T, FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Suspension: Mechanical suspension
King Pin: JOST brand 2.0 or 3.5 inch
Landing Gear: JOST brand D200T or Chinese brand 28tons
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Bottom Platform: 3mm-thick checkered plate
