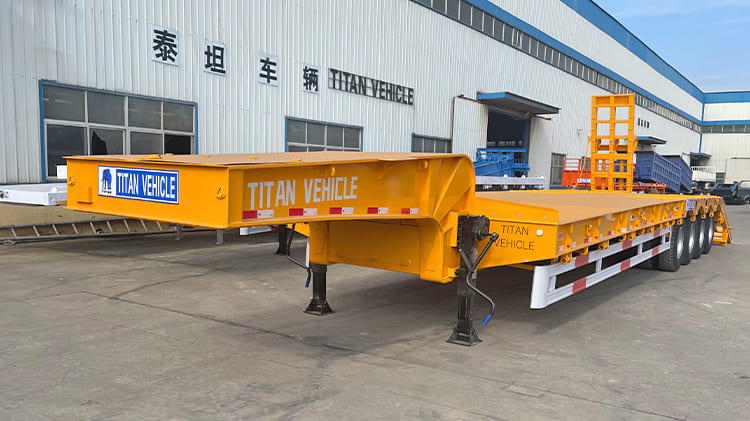

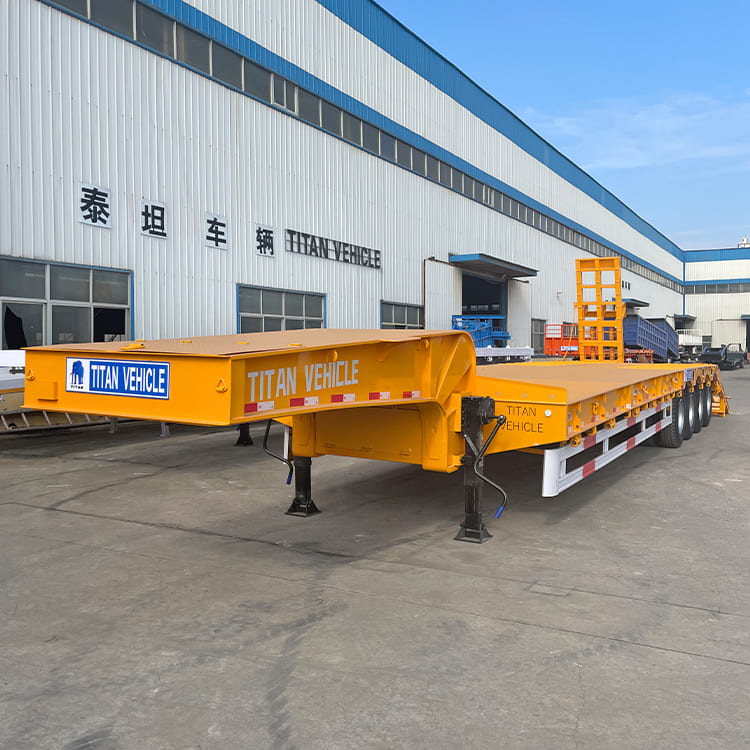

One of the most practical benefits of the 40 feet low bed trailer lies in its highly efficient loading and unloading system. The low profile deck, combined with a reinforced rear ramp supported by heavy duty springs, enables construction machinery and oversized equipment to be moved smoothly without relying on external lifting devices. This setup enhances operational efficiency, especially for logistics operators in Uganda managing heavy cargo.

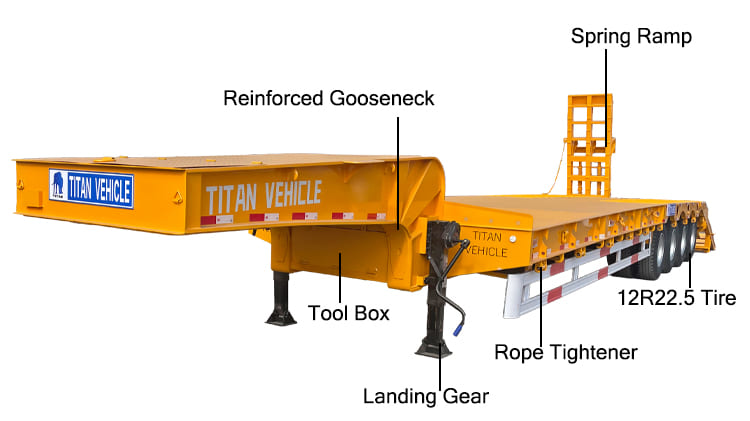

Overall Dimension: 13000mm*3000mm*1710mm
Side Beam: 300mm high, 8mm thick
Floor Plate: 5mm thickened pattern plate

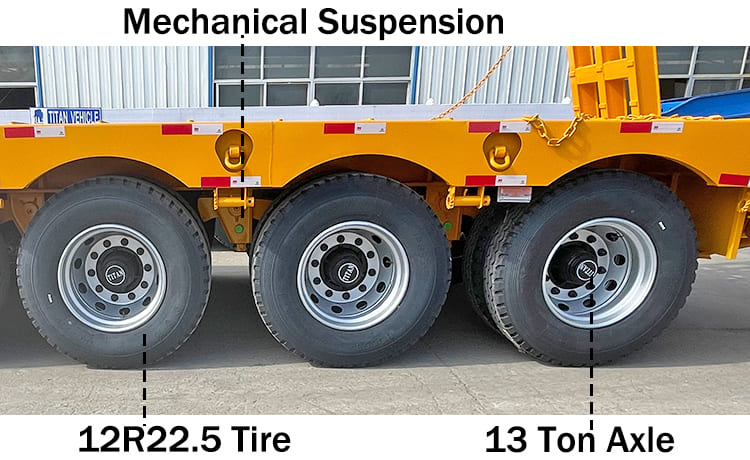

Axles: 3 axles, 13ton, TITAN brand
Tire: 12 units, 12R22.5
Suspension: mechanical suspension
Leaf Spring: 10 layers
Ramp: 16mm thick spring ramp
Landing Gear: 28 ton
Lamp: LED lamp
At the core of the low bed trailer types is a robust load bearing framework. The main beam is constructed from Q460 high strength steel, offering superior tensile strength and load capacity compared to standard materials. This structural design ensures that the chassis can support extreme loads without compromising alignment or stability.

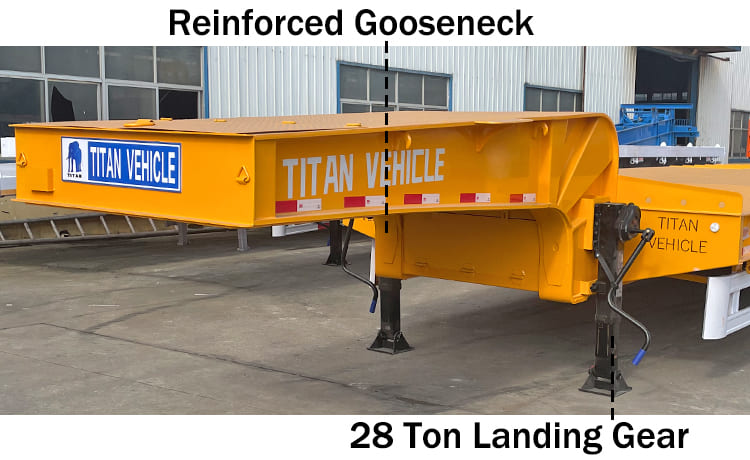

To further reinforce the frame, the gooseneck section incorporates a double layer vertical plate system. This composite reinforcement effectively reduces torsion and bending, guaranteeing that the 40 feet low bed trailer remains stable and secure over long distance transport routes throughout Uganda.

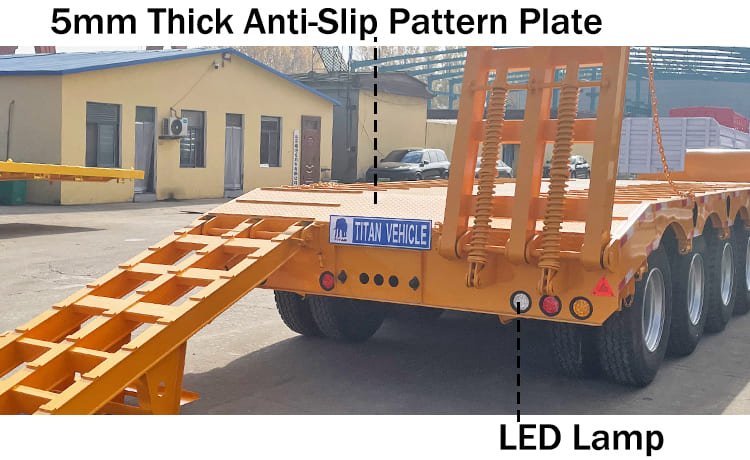

The cargo platform of the low bed trailer types utilizes patterned steel plates rather than a smooth surface. Made from 5 mm thick high strength steel, the deck has a raised texture that increases friction between the platform and transported machinery. This feature minimizes the risk of cargo shifting during braking, turning, or travel on uneven roads, improving safety and reducing the likelihood of damage for operators in Uganda.
Surface durability is another critical aspect of the 40 feet low bed trailer. Each unit undergoes a two stage coating process, beginning with powder coating and followed by high temperature baking paint. This treatment provides exceptional resistance to corrosion, wear, and color fading. In the hot, dusty, and sometimes humid conditions commonly experienced in Uganda, this protective finish preserves both structural integrity and appearance, lowering repainting frequency and long term maintenance costs.

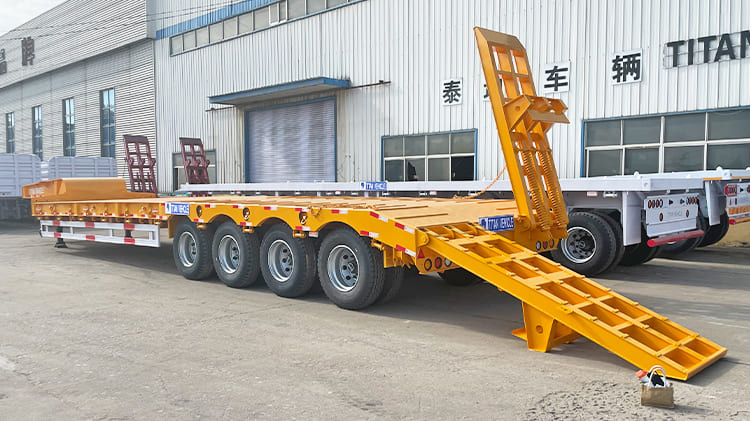

The rear ramp of the low bed trailer types is engineered for strength and operational convenience. A 16 mm thick ramp panel is supported by reinforced springs that absorb impact during loading, allowing a single operator to raise or lower the ramp with minimal effort. This spring assisted design streamlines loading operations, which is especially valuable in logistics projects where time and manpower are limited.
Cargo safety is further enhanced with multiple rope tightening devices installed along the sides of the chassis. These tie down points work together with the reinforced deck to form a coordinated securing system, stabilizing heavy machinery from all directions. Each rope tightener features a quick lock mechanism, allowing precise tension adjustment to ensure cargo remains firmly secured even during sudden braking or sharp turns.
Visibility and operational safety are reinforced through a high brightness LED lighting system. These lamps outline the 40 feet low bed trailer, improving visibility in low light, dusty, or foggy conditions. Each light is housed in a durable, impact resistant casing to prevent damage from debris or vibration, ensuring reliable performance during extended transport operations.
Braking reliability is addressed through heavy duty 16 ton brake pads that deliver consistent stopping power and reduce braking distance under full load. The air pipeline system uses pressure resistant rubber hoses, while reinforced electrical cables maintain stable signal transmission, enhancing the overall safety and durability of the low bed trailer types.
Before export, each 40 feet low bed trailer undergoes thorough protective treatment. All exposed metal surfaces are coated with moisture resistant wax and then wrapped in a robust waterproof fabric. This dual layer protection shields the trailer from humidity, salt, and corrosion during maritime transport. As a result, every low bed trailer types arrives in Uganda in optimal condition, ready for immediate deployment without additional preparation.
