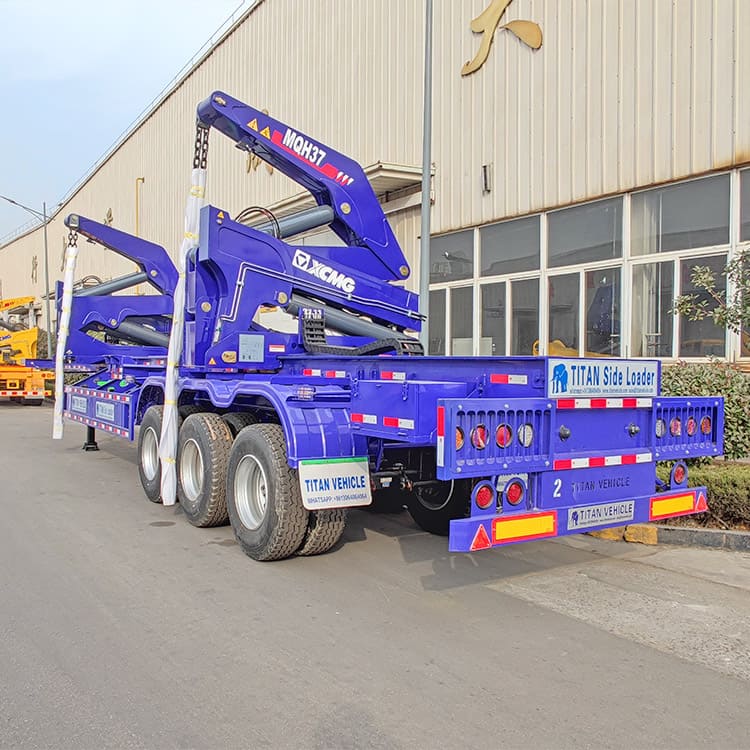

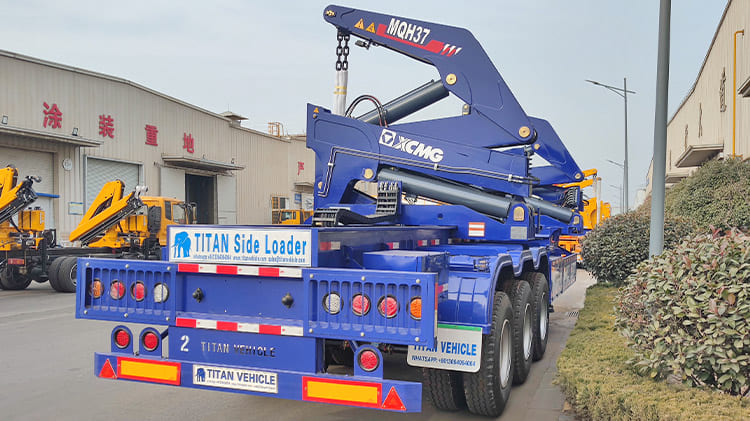

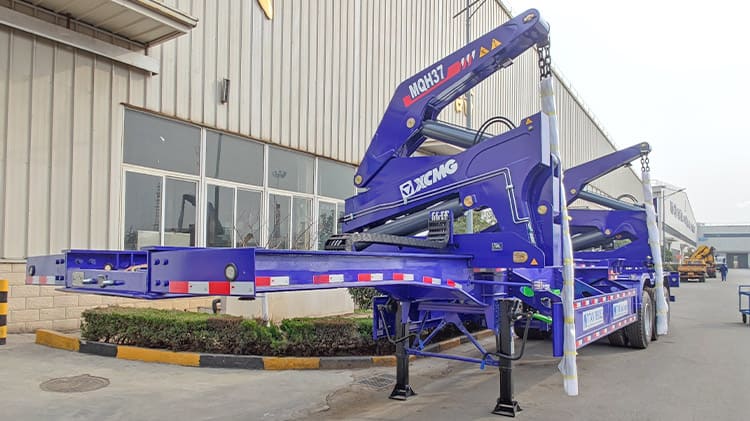

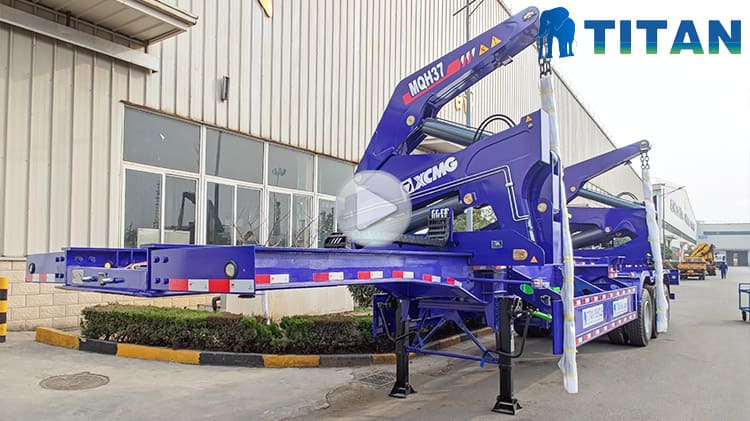

The side loader is built to handle demanding transport tasks with safety and efficiency, featuring a durable chassis, high-strength materials, and a reliable lifting system. For operators in Uganda, where logistics depend heavily on equipment performance, having a side loader crane that combines flexibility with long-lasting strength is essential to ensure smooth container operations.

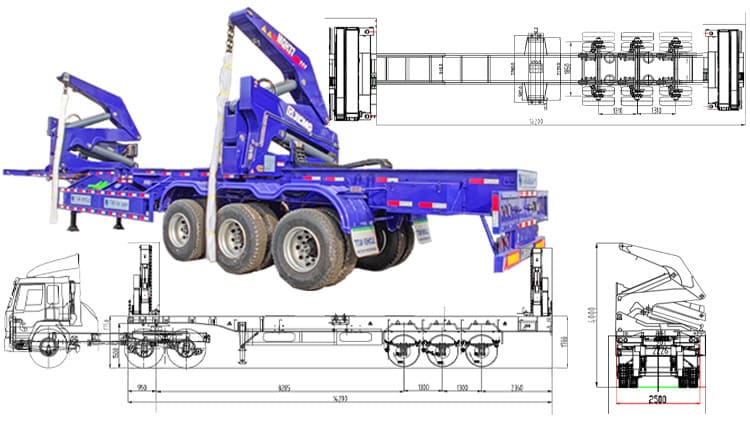

Dimension: 14100mm*2500mm*1650mm
Lifting Capacity: 45 ton
Crane Capacity: 37 ton
Trailer Material: high strength alloy steel
Axle: 3 axles
Tire: 12 units, 12R22.5
Landing Gear: 28 ton, FUWA brand
Leaf Spring: 10 layers
Suspension: mechanical suspension
Lamp: LED Lamp
A major feature of the design is the reinforced suspension and chassis system. These components are engineered to withstand the pressure of long-distance transportation and rough terrain. Even when used continuously for daily operations, the reinforced structure helps maintain stability and prevents premature wear. This makes the side loader for sale suitable for both routine container transfers and intensive assignments that require extended hours of operation.

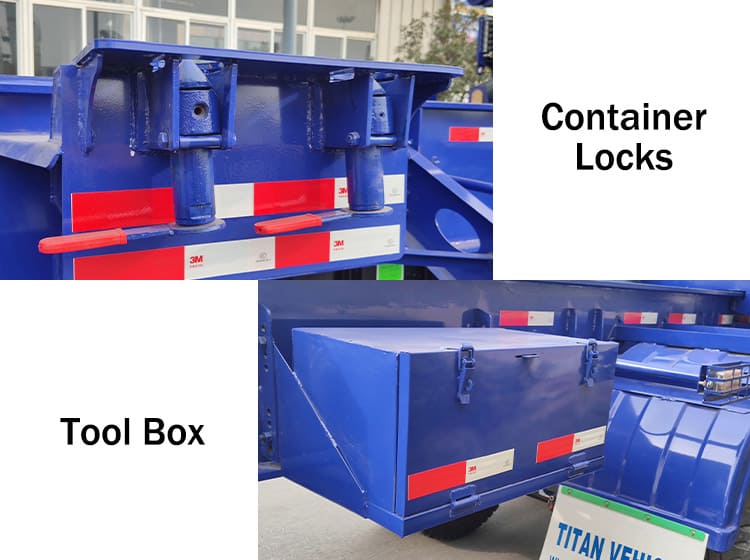

To improve efficiency, the side loader trailer comes with an adjustable container locking mechanism. This feature allows operators to secure containers of different lengths quickly and safely. By simplifying the fastening process, it reduces preparation time and minimizes risks during movement, ensuring containers remain stable throughout transport.

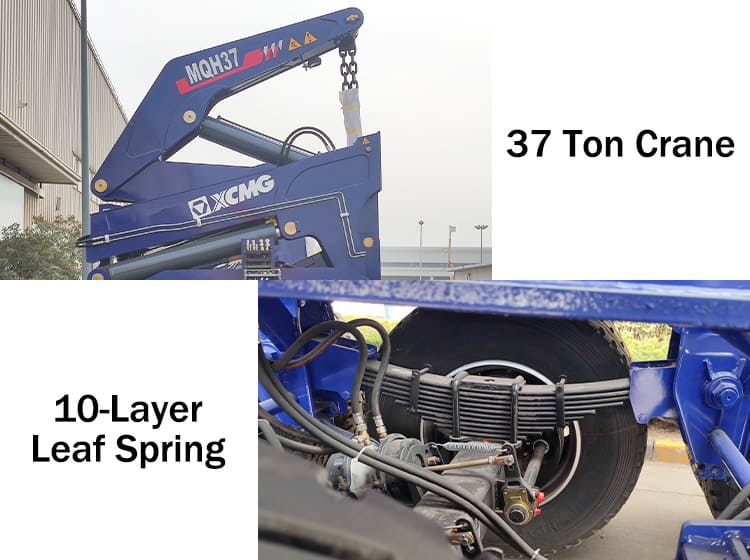

At the heart of its operation lies the hydraulic crane system. This system enables smooth vertical lifting and lowering while also allowing for horizontal adjustments and angular positioning. Such versatility gives operators the ability to handle containers in tight or uneven areas where larger external cranes may not be practical.
The hydraulic system is capable of lifting up to 37 tons. Compared with older mechanical methods, this greatly increases operational speed and reduces downtime. Faster transfers translate into higher productivity, particularly in settings where containers must be moved frequently.
Managing the crane is straightforward through a manual valve control system. Although simple in design, the side loader crane system is highly dependable and allows operators to perform precise movements.
Even in Uganda's challenging climate, with sudden rain or high temperatures, the manual controls remain effective, ensuring reliable container handling during both loading and unloading.
The traction of the side loader crane is a single 12 mm thick steel plate used for the structural platform. Unlike multi-piece frames, this one-piece configuration significantly lowers the chances of cracks, warping, or long-term damage caused by heavy loads.
In Uganda, where operators often travel over uneven roads and face conditions such as sudden braking or rough ground, this reinforced platform provides stability and protection for containers during the entire transportation.
Lighting and visibility have also been prioritized. The side loader for sale is fitted with LED lights that provide stronger brightness and last longer than traditional bulbs. These lights are resistant to vibration and stone impacts, which are common on rough roads.

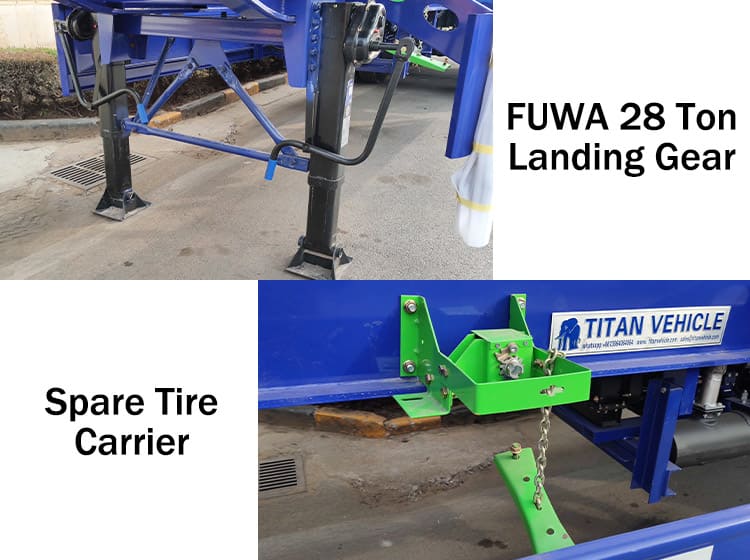

The side loader for sale landing gear plays a vital role in supporting lifting tasks. Built for heavy-duty use, these support legs can carry dynamic loads of 28 tons and static loads up to 45 tons.
Their wide base design distributes weight evenly across the ground, reducing pressure and preventing the side loader crane trailer from sinking into soft or unstable surfaces. For operators working in areas with sandy soil, muddy terrain, or uneven ground, this added stability is a critical advantage.
The side loader for sale design is not limited to strength alone but also considers adaptability during delivery. Depending on customer requirements, the equipment can be shipped in standard containers or by roll-on/roll-off (RORO) vessels.
Before international shipment, TITAN implements protective measures to safeguard the equipment. Each side loader crane is sprayed with a layer of protective wax, which helps resist corrosion from salt, moisture, and other environmental factors during sea transport. In addition, waterproof coverings are applied to shield the machinery from sea spray and adverse weather conditions while in transit.
