Chapter 1: What is a Flatbed Semi Trailer for Sale In Uganda?
Chapter 1.1: What Size Is a Flatbed Trailer for Sale in Uganda?
Chapter 1.2: Flatbed Semi Trailer Specification
Chapter 1.3: TITAN Flatbed Semi Trailer Uganda Shipping and Maintenance
Chapter 2: What are the Advantages of a Flatbed Semi Trailer In Uganda?

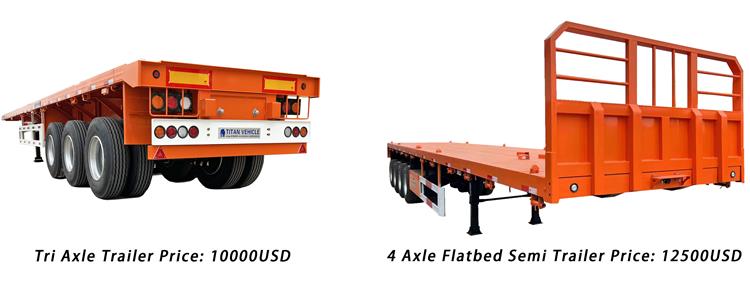

Chapter 3: Types of Flatbed Trailer Uganda
3 Axle flatbed semi trailer price in uganda is a heavy-duty transport vehicle specially used to transport containers. Widely used in modern logistics transportation, it plays a key role in the fast, efficient and safe transportation of goods.
Flatbed trailer sizes feature no fixed cargo box and a flat cargo area between the front and rear that can be adjusted for different cargo sizes and shapes.
Flatbed trailer prices have a very strong load capacity and can usually carry containers of various sizes such as 20 feet, 40 feet and 45 feet. In addition, it can carry various types of cargo, such as wood, steel, cement, construction materials and agricultural products, etc.
The Flatbed trailer for sale in Uganda has been designed to make it ideal for long hauls as it easily attaches to a large trailer or truck head for highway travel. In addition, it is also convenient to load and unload goods due to its flat cargo area, which makes the flatbed semi trailer for sale in Uganda one of the preferred means of transportation for many logistics companies.

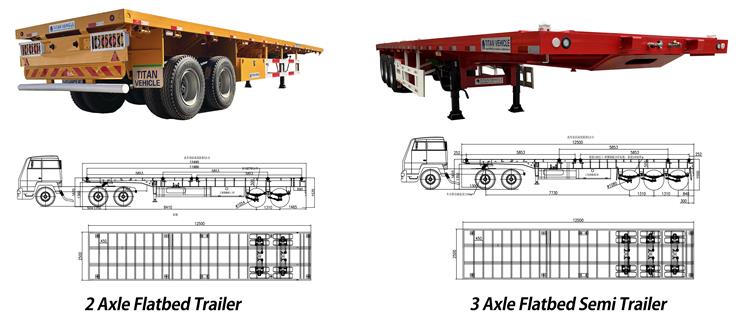

20 foot flatbed trailer sizes: 7000mm*2500mm*1550 mm

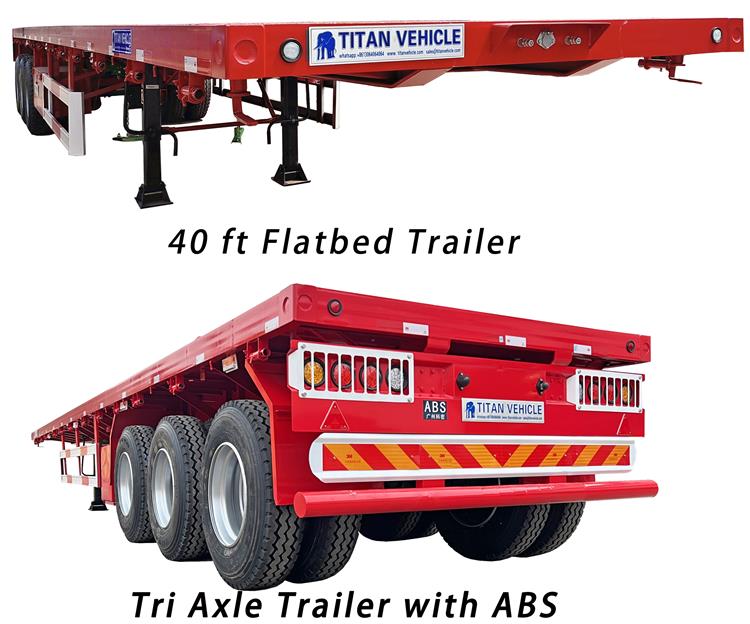

40 ft flatbed semi trailer size: 12500mm*2500mm*1530 mm
45 ft flatbed trailer for sale in Uganda size: 13800mm*2500mm*1530 mm
48 ft flatbed semi trailer size: 14900mm*2500mm*1530 mm
53 ft flatbed trailer size: 16200mm*2500mm*1530 mm
What is a Flatbed Semi Trailer for Sale In Uganda? - What Size Is a Flatbed Trailer for Sale in Uganda?
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 2/3/4 axles, 13T/16T, FUWA/ BPW/ TITAN Brand
Tire: 8/12/16 units, 12.00R22.5 or 315/80R22.5
Suspension: Mechanical suspension or Air suspension
King Pin: JOST brand 2.0 or 3.5 inch
Landing Gear: JOST brand D200T or Chinese brand 28tons
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets
Valve: WABCO valve ABS: Optional
Light: LED light
Tool Box: 1m x 0.5m x 0.5m
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
The frame structure of 3 Axle flatbed semi trailer price in uganda is usually made of high-strength steel material, which has high load-bearing capacity and fatigue resistance. The shape of the frame is usually trapezoidal, which is beneficial to improve the stability of flatbed trailer sizes.
Suspension system: the suspension system of flatbed semi trailer for sale in uganda mainly includes springs, shock absorbers and bearings and other components. The design and manufacture of the suspension system must meet the stability and comfort requirements of the vehicle during driving.
Locking device: flatbed trailer prices are equipped with a special locking device for securing the container. These locking devices are usually four locking holes located at the four corners of the vehicle body to ensure that the container will not shift or fall off during transportation.
Braking system: flatbed trailer for sale in Uganda is equipped with advanced braking systems, including air brakes, ABS (anti-lock braking system), etc., to ensure the safety of the vehicle during driving.
Tires and wheels: 3 axle flatbed semi trailer price in Uganda Usually use high-load, wear-resistant tires and wheels to meet the long-term, high-speed, and heavy-duty transportation requirements.

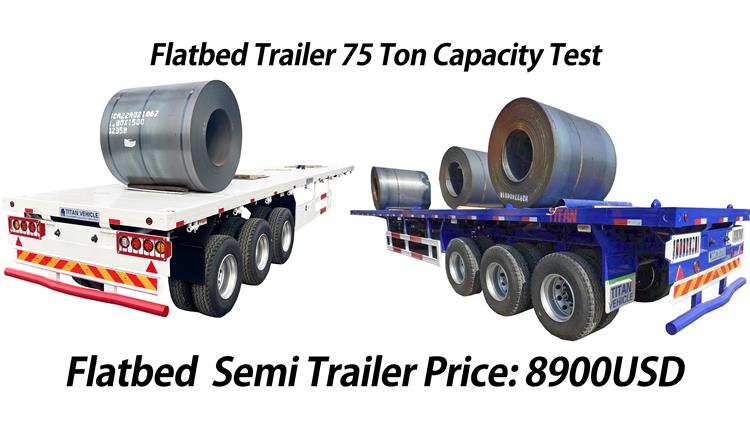

Flatbed Trailer 75 Ton Capacity Test
3 Axle flatbed semi trailer price in uganda is the workhorse model for container transportation between ports, which can realize fast loading and unloading and large volume transportation.
Flatbed semi trailer for sale in uganda usually consists of a steel frame and chassis which makes it very strong and durable and can withstand all kinds of harsh weather and road conditions. In addition, Flatbed trailer sizes are also equipped with multiple safety equipment, such as brake system, emergency stop device and light system, to ensure safety during transportation.
Flatbed trailer prices are a very practical means of transport with strong load capacity and adaptability, and are widely used in the logistics industry. Its design makes it ideal for transporting all types of cargo and containers, and it is durable enough to withstand a variety of rough road and weather conditions.
As a professional flatbed trailer for sale in Uganda supplier, in an era of increasing efficiency, the delivery method we adopt is also an important reason to ensure a better customer experience. We suggest customers to choose container shipping.
Since the container is a strong sealed box, the container itself is a strong package. After the goods are packed and sealed, there is no need to unpack and repack them on the way. It is also not easy to damage the goods in the box. Container transportation can reduce cargo damage and poor cargo caused by theft, damp, pollution and other reasons. Due to the high loading and unloading efficiency, the loading and unloading time is shortened.
Of course the color and configuration can be selected according to your requirements. It can also be shipped by bulk cargo. If you buy two flatbed trailers together for sale in Uganda, TITAN can also put them in a container to save on shipping. As you know, container shipping is a cheaper and faster way.
TITAN will also provide you with the most professional service, if it is transported by bulk cargo, we will cover the trailer with a rain cloth on 3 axle flatbed semi trailer price in uganda, completely free of charge. Due to the highest quality flatbed semi trailer for sale in uganda and the most professional service, I TITAN flatbed trailer prices have won a good reputation from all my clients. They keep giving us new orders. That's why we can export so many trailers.

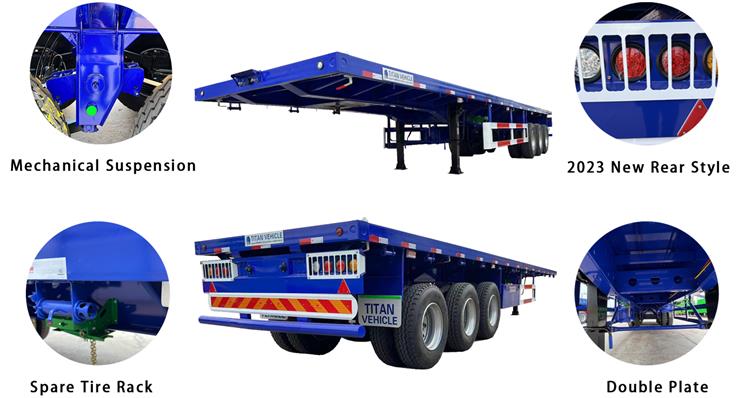

Details of Flatbed Semi Trailer for Sale In Uganda
3 Axle flatbed semi trailer price in uganda can carry containers of different sizes according to needs, such as 20 feet, 40 feet, 45 feet, etc., with high adaptability.
Flatbed semi trailer for sale in uganda can realize fast loading and unloading, which improves the efficiency of logistics transportation.
The design of the locking device and braking system of Flatbed trailer sizes ensures the safety of the goods during transportation.
Flatbed trailer prices adopt a lightweight design, which reduces the weight of the vehicle and helps reduce fuel consumption and carbon emissions.
The main beam of TITAN 3 axle flatbed semi trailer price in uganda is made of Q345 high-strength steel, which has greater load-bearing capacity. TITAN also adopts advanced submerged arc welding process to produce trailers, and there is no welding interface between the middle, bottom and upper plates of the main beam.
In order to strengthen the main beam, the flatbed semi trailer for sale in uganda uses double boards on the gooseneck part of the main beam to make the trailer more durable. Flatbed trailer sizes reinforce the main beam. In the gooseneck part of the main beam, the middle plate is reinforced with double plates, so that the deformation of the main beam is small even if it is loaded with heavy loads.
Flatbed trailer prices use 6 back racks to produce the frame of the flatbed trailer, which not only makes the frame of the trailer stronger, but also the platform never sags.
The Flatbed trailer for sale in Uganda uses high-density braces to support the trailer beams, each beam has its own support, and the distance between every two braces is only 50 cm.
3 Axle flatbed semi trailer price in uganda uses a 3mm thick non-slip platform. And our trailer adopts the most advanced powder spraying and baking paint process, our paint is not only beautiful in color, but also has strong adhesion, even if it is used for more than 5 years, it will not fall off or fade.
Flatbed semi trailer for sale in uganda container lock will not damage the side beam.
Flatbed trailer sizes Suspension uses triple reinforcements with a thickness of 8mm and a kin pin diameter of 70mm to make the suspension even stronger.
Flatbed trailer prices use 13 tons of axles and 16 tons of brake pads, the width of the brake pads is 220mm, which makes the braking distance of the trailer shorter and improves the safety of the trailer.
TITAN flatbed trailer for sale in Uganda The landing gear uses triangular reinforcements to effectively prevent the legs of the landing gear from tilting left and right and prolong the service life of the landing gear.
What are the Advantages of a Flatbed Semi Trailer In Uganda?
Container chassis trailer, Flatbed trailer for sale in Uganda, Fence semi trailer, and Side wall trailer are all large-scale transport vehicles, but there are certain differences in usage and structure.
Container chassis trailer is mainly used for shipping containers, Flatbed trailer for sale in Uganda is suitable for large or extra-long cargo, Fence semi trailer is suitable for bulk and small cargo, Side wall trailer is also suitable for bulk and small cargo, but with Features for greater flexibility and ease of cargo handling. In practical applications, according to the different characteristics of goods and transportation needs, choosing the appropriate type of semi-trailer can improve transportation efficiency and reduce costs.
Container chassis trailer, 3 Axle flatbed semi trailer price in uganda, Fence semi trailer, Side wall trailer has strong carrying capacity and can carry a large amount of goods. Container chassis trailer, Flatbed semi trailer for sale in uganda, Fence semi trailer, Side wall trailer have a stable structure and can ensure the safety of the goods during transportation.
Container chassis trailer, Flatbed trailer sizes, Fence semi trailer, Side wall trailer have a wide range of applications, all of which can be applied to different cargo transportation needs and have certain versatility.
Container Chassis Trailer: It is mainly used to transport standardized containers, which has the characteristics of strong carrying capacity and stable structure. The bottom of the carriage is flat, and there are fixed points at the four corners to fix the container. The length of the car is generally 40 feet, and it can load one or two 20-foot containers or one 40-foot container.
Flatbed Semi Trailer: Flatbed trailer prices have no fence and side panels, and are mainly used to transport various large goods and equipment. The compartment has no fence and has a flat bottom, which is used to transport various large or super-long goods, such as steel, pipes, wood, etc. Carriage length and load capacity can be customized as required.
Fence Semi Trailer: With a fence and side panels, it can be used to transport various goods such as wood, stone, coal, etc. Fences are installed around the compartment, and the material and height of the fence can be customized according to needs.
Side Wall Trailer: Based on the flatbed trailer for sale in Uganda, side panels are added. The side panels can be pulled apart or removed at will, which is convenient for loading, unloading and transportation of goods. There are detachable side panels installed on both sides of the carriage, which can be used to transport various bulk cargo and small cargo. The side panels can be opened or removed to facilitate loading and unloading of goods.
